Product Information

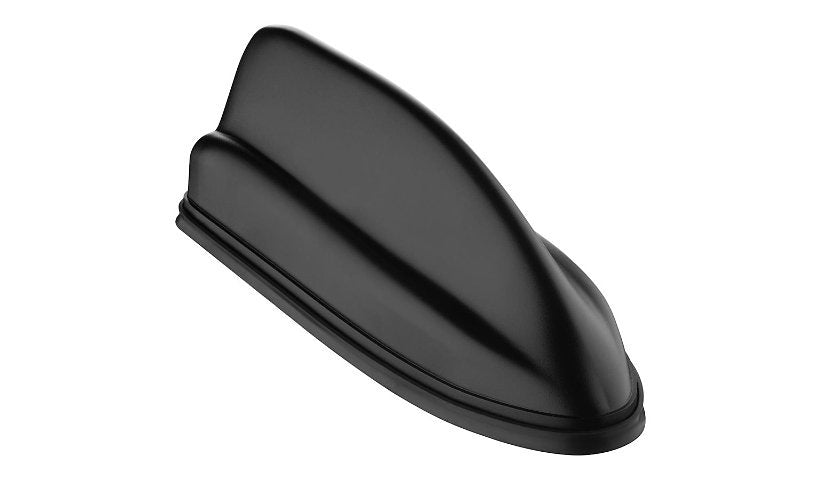

Airgain's MULTIMAX 5G from the Antenna Plus line is a rugged 6-in-1 bolt mount antenna with 2x2 MIMO cellular for 5G, LTE, CBRS and Band 71, three Wi-Fi elements covering 2.4, 5 and 6 GHz, and an RHCP GNSS element. It is IP67, IP69K and MIL-STD 810 rated and ground plane independent, with SMA cellular, SMA female Wi-Fi and FME GPS connectors.
Key Features
- 6-in-1: 2 cellular, 3 Wi-Fi, GNSS
- 5G, LTE, CBRS, Band 71
- Wi-Fi 2.4 / 5 / 6 GHz
- IP67, IP69K, MIL-STD 810
- Threaded bolt mount
- 5 year warranty
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain Antenna Plus MULTIMAX 5G
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Outdoor, Threaded bolt mount
Antenna Compatibility: 5G, Band 71, BeiDou, CBRS, GALILEO, GLONASS, GNSS, GPS, LAA, LTE, QZSS, Wi-Fi
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 2.4 GHz, 3300 - 4200 MHz, 5.15 - 5.85 GHz, 5.15 - 7.125 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x cellular antenna - SMA (male), 3 x Wi-Fi antenna - SMA (female), GPS antenna - FME (female)
Technical Information
Antenna Features: 2x MIMO, Ground plane independent, IP67, IP69K, MIL-STD 810, Right-hand circular polarization (RHCP), Rugged, VSWR < 2:1
Dimensions and Weight
Antenna Length: 9.1 inch
Height: 3.1 inch
Width: 3.1 inch
Length: 9.1 inch
Included Items
Cables: 3 x antenna cable - 1 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
