Product Information

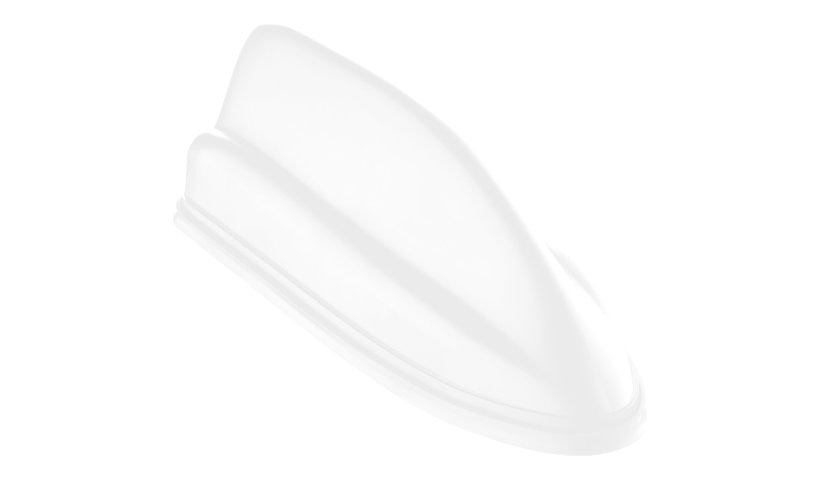

The Airgain AP-MF5G-C2W3G-Q-W1 MULTIMAX 5G is a white rugged outdoor antenna with 2x2 MIMO 5G/LTE, three Wi-Fi elements and active GNSS with RHCP. It covers 617 to 960 MHz, 1.7 to 2.7 GHz and 3300 to 4200 MHz including Band 71, CBRS and LAA, Wi-Fi at 2.4 GHz and 5.15 to 7.125 GHz, and GPS, GLONASS, Galileo, BeiDou and QZSS. It needs no ground plane, fits with a threaded bolt, is IP67, IP69K and MIL-STD 810 rated and 9.1 inches tall. Leads are two cellular SMA male, three Wi-Fi SMA female and one GPS FME female, each 1 ft.
Key Features
- 6 lead 5G antenna
- 2x2 5G/LTE, 3 Wi-Fi, GNSS
- Active GPS with RHCP
- IP67, IP69K, MIL-STD 810
- Threaded bolt mount
- White, 9.1 in tall
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain Antenna Plus MULTIMAX 5G
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Placement: Outdoor, Threaded bolt mount
Antenna Compatibility: 5G, Band 71, BeiDou, CBRS, GALILEO, GLONASS, GNSS, GPS, LAA, LTE, QZSS, Wi-Fi
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 2.4 GHz, 3300 - 4200 MHz, 5.15 - 5.85 GHz, 5.15 - 7.125 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x cellular antenna - SMA (male), 3 x Wi-Fi antenna - SMA (female), GPS antenna - FME (female)
Technical Information
Active Antenna: Active (GPS)
Antenna Features: 2x MIMO, Ground plane independent, IP67, IP69K, MIL-STD 810, Right-hand circular polarization (RHCP), Rugged, VSWR < 2:1
Dimensions and Weight
Antenna Length: 9.1 inch
Height: 3.1 inch
Width: 3.1 inch
Length: 9.1 inch
Included Items
Cables: 6 x antenna cable - 1 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
