Product Information

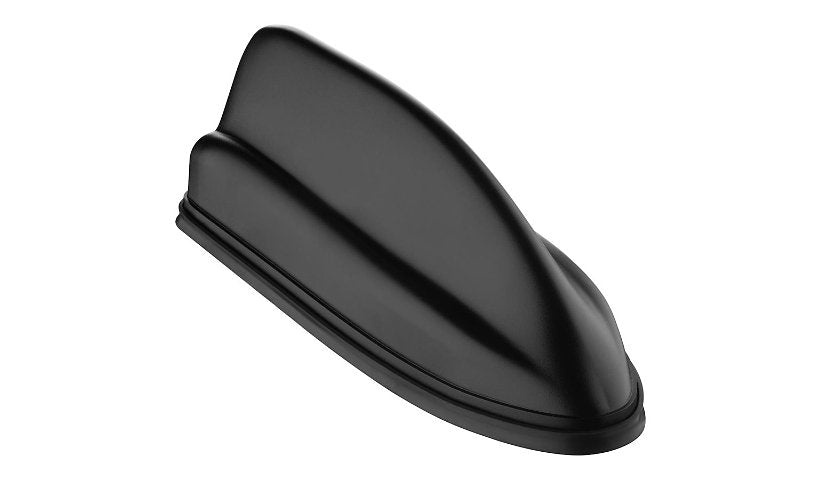

The Airgain AP-MF5G-CG-Q-B1 MULTIMAX 5G is a black outdoor shark fin antenna for 5G/LTE and GNSS. It covers 617 to 960 MHz, 1.7 to 2.7 GHz, 3300 to 4200 MHz and 5.15 to 5.85 GHz including Band 71, CBRS and LAA, plus 1550 to 1610 MHz for GPS, GLONASS, Galileo, BeiDou and QZSS. It has one cellular lead with SMA male and one GPS lead with FME female on 1 ft cables, fits with a threaded bolt and is IP67, IP69K, MIL-STD 810G and RoHS. The spec mentions MIMO while only one cellular lead is listed, so please confirm.
Key Features
- 5G shark fin antenna
- 617 MHz to 5.85 GHz
- GPS and GNSS
- SMA male and FME female
- IP67, IP69K, MIL-STD 810G
- Threaded bolt mount, black
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain MULTIMAX
Model: 5G
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Outdoor, Threaded bolt mount
Antenna Compatibility: 5G, Band 71, BeiDou, CBRS, GALILEO, GLONASS, GNSS, GPS, LAA, LTE, QZSS
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 3300 - 4200 MHz, 5.15 - 5.85 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 1 x cellular antenna - SMA (male), 1 x GPS antenna - FME (female)
Technical Information
Antenna Form Type: Shark fin
Antenna Features: IP67, IP69K, MIL-STD 810G, MIMO technology, RoHS
Dimensions and Weight
Height: 3.1 inch
Width: 3.1 inch
Depth: 9.1 inch
Included Items
Cables: 1 x antenna cable - 1 ft, 1 x GPS cable - 1 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
