Product Information

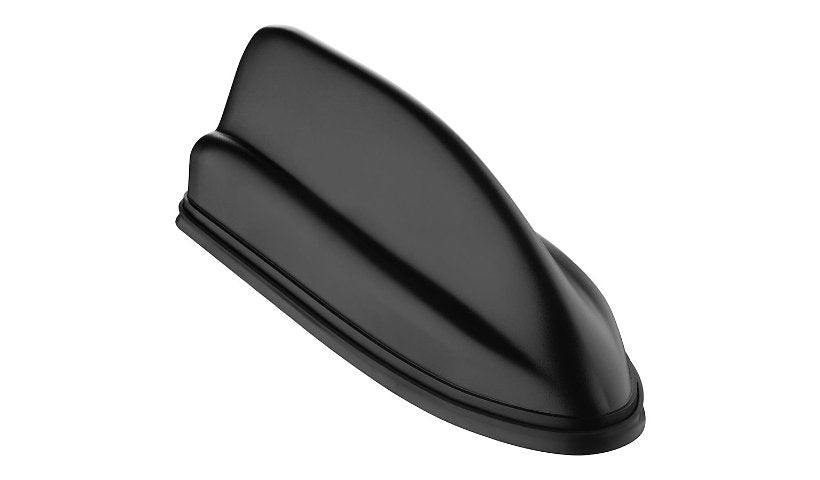

The Airgain AP-MF5G-CWG-Q-B1 MULTIMAX 5G is a black outdoor shark fin antenna with cellular, Wi-Fi and GNSS. It covers 617 to 960 MHz, 1.7 to 2.7 GHz and 3300 to 4200 MHz including Band 71, CBRS and LAA, Wi-Fi at 2.4 GHz and 5.15 to 7.125 GHz, and 1550 to 1610 MHz for GPS, GLONASS, Galileo, BeiDou and QZSS. It bolt mounts and is IP67, IP69K, MIL-STD 810G and RoHS. It has one cellular SMA male, one Wi-Fi SMA female and one GPS FME lead, each 1 ft.
Key Features
- Shark fin 5G antenna
- Cellular, Wi-Fi and GNSS
- Wi-Fi up to 7.125 GHz
- IP67, IP69K, MIL-STD 810G
- Bolt mount, outdoor
- 3 leads, 1 ft each
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain MULTIMAX
Model: 5G
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount, Outdoor
Antenna Compatibility: 5G, Band 71, BeiDou, CBRS, GALILEO, GLONASS, GNSS, GPS, LAA, LTE, QZSS, Wi-Fi
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 2.4 GHz, 3300 - 4200 MHz, 5.15 - 5.85 GHz, 5.15 - 7.125 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Cellular antenna - SMA (male), GPS antenna - FME, Wi-Fi antenna - SMA (female)
Technical Information
Antenna Form Type: Shark fin
Antenna Features: IP67, IP69K, MIL-STD 810G, MIMO technology, RoHS
Dimensions and Weight
Height: 3.1 inch
Width: 3.1 inch
Depth: 9.1 inch
Included Items
Cables: 1 x antenna cable - 1 ft, 1 x GPS cable - 1 ft, 1 x Wi-Fi cable - 1 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
