Product Information

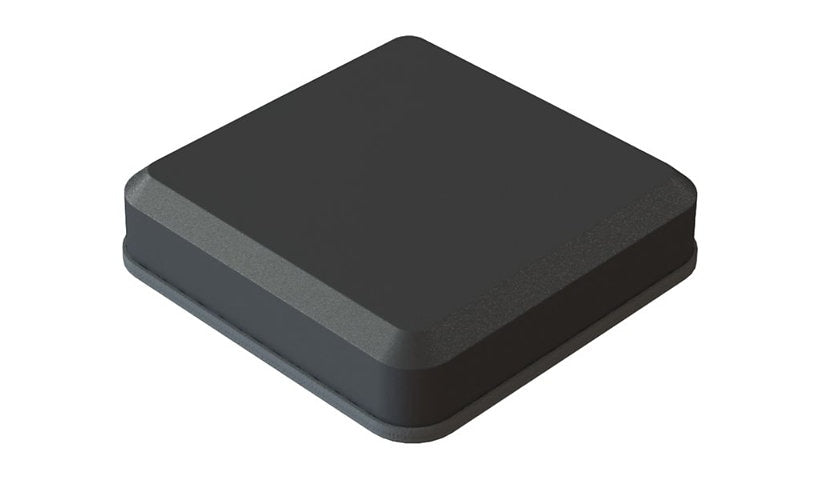

The Airgain Antenna Plus RECON13 5G (AP-RT5G-C4W4G-Q-B1) is a black rugged outdoor and vehicle antenna with 4x4 MIMO 5G/LTE, four Wi-Fi elements and GNSS. It covers 617 to 960 MHz, 1.7 to 2.7 GHz and 3300 to 4200 MHz, Wi-Fi at 2.4 GHz and 5.15 to 7.125 GHz, and 1550 to 1610 MHz for GPS, GLONASS, Galileo, BeiDou and QZSS. It needs no ground plane, fits with a threaded bolt and is IP67, IP69K and MIL-STD 810G rated. Leads are four cellular SMA male, four Wi-Fi SMA female and one GPS FME female, on 1 ft cables.
Key Features
- 4x4 MIMO 5G antenna
- 4 Wi-Fi elements to 7.125 GHz
- GNSS multi constellation
- IP67, IP69K, MIL-STD 810G
- Threaded bolt, vehicle use
- Black
Product Information
Brand: Airgain
Manufacturer: Airgain
Product Line: Airgain Antenna Plus RECON13 5G
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Outdoor, Threaded bolt mount, Vehicle
Antenna Compatibility: 5G, BeiDou, CBRS, GALILEO, GLONASS, GNSS, GPS, LAA, LTE, QZSS, Wi-Fi
Frequency Range: 1.7 - 2.7 GHz, 1550 - 1610 MHz, 2.4 GHz, 3300 - 4200 MHz, 5.15 - 5.85 GHz, 5.15 - 7.125 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 1 x GPS antenna - FME (female), 4 x antenna - SMA (male), 4 x Wi-Fi antenna - SMA (female)
Technical Information
Antenna Features: 4x4 MiMo LTE, Ground plane independent, IP67, IP69K, MIL-STD 810G, Rugged
Dimensions and Weight
Height: 1.8 inch
Width: 7.5 inch
Depth: 7.5 inch
Included Items
Cables: Antenna cable - 1 ft, GPS cable - 1 ft, Wi-Fi cable - 1 ft
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
