Product Information

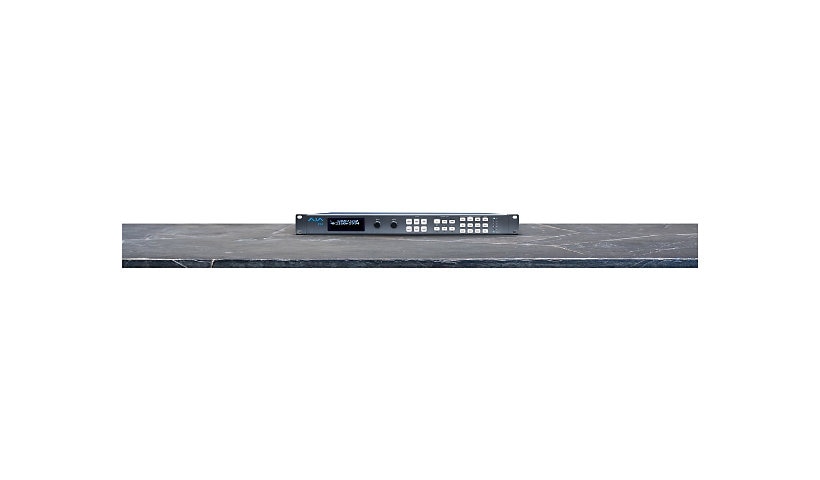

The AJA FS4 is an advanced 2K/HD/SD frame synchronizer and cross-converter for studio and production environments, with four channels for flexible SD and HD workflows and an enhanced single-channel mode with 4K60 signal support. It offers a motion-adaptive deinterlacer, color correction, genlock and 48 kHz audio, with AES/EBU, 3G-SDI and HDMI connections. SNMP support allows easy integration into networked systems. The 1RU rack-mountable frame has redundant power supplies, runs on 120/230 V AC with a maximum of 70 W, and operates from 0°C to 40°C.
Key Features
- 4-channel frame synchronizer / cross-converter
- 2K/HD/SD, 4K60 single-channel mode
- Motion-adaptive deinterlacer, color correction
- 3G-SDI, HDMI, AES/EBU
- 1RU, redundant power, SNMP
Product Information
Brand: AJA
Manufacturer: AJA
Product Line: AJA
Model: FS4
Manufacturer Part Number: AJA-FS4
Product Type: 2K/HD/SD frame synchronizer and cross-converter
Technical Information
Features: 1RU frame, 4-channel, 48 kHz sampling rate, 4K60 signal support, Color correction, Enhanced single channel mode, Genlock support, Motion-adaptive deinterlacer, Rack-mountable, Redundant power supply, SNMP support
Dimensions and Weight
Width: 17.5 inch
Height: 1.7 inch
Depth: 4.2 inch
Weight: 7.94 lbs
Included Item
Packaged Quantity: 1
Additional Information
Frequency: 50/60 hertz
Required Voltage: AC 100-240 volt
Max Operating Temperature: 104 degree Fahrenheit
Max Power Consumption: 70 watt
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Terminals: (1) x AES / EBU input - DB25, (1) x AES / EBU output - DB25, (1) x GPI - 25 pin D-Sub (DB-25), (1) x HD-SDI output - BNC, (1) x MADI input - BNC, (1) x MADI input - ST fiber, (1) x MADI output - BNC, (1) x MADI output - ST fiber, (1) x monitor output - 19 pin HDMI Type A, (1) x network - RJ-45 - Gigabit Ethernet, (2) x loop thru - BNC, (4) x 3G-SDI input - BNC, (4) x 3G-SDI output - BNC, (4) x SDI input/output - SFP
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Manufacturer Limited Warranty: 5 years
