Product Information

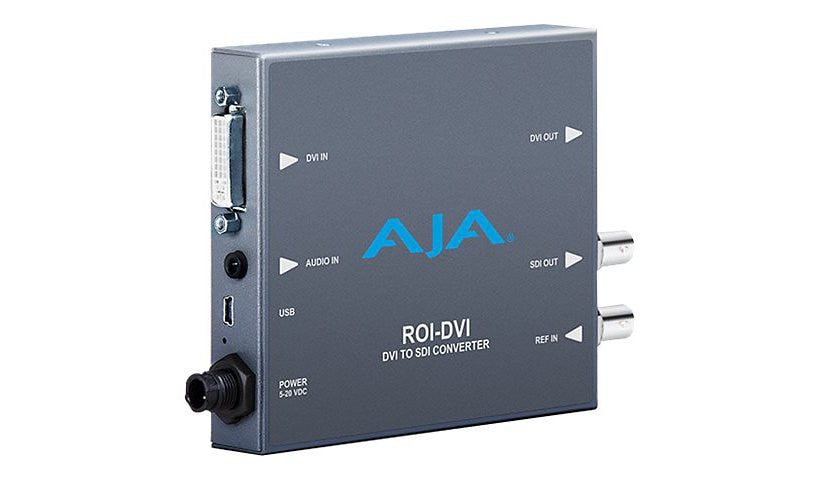

AJA's ROI-DVI Mini-Converter delivers high-quality conversion of computer DVI and HDMI outputs to baseband SDI video in an affordable, portable package. With extensive audio functions, excellent image scaling and aspect and frame rate conversion, it brings computer signals into the video world without straining your budget or space. It includes DVI loop-through, 3G-SDI output, REF input and analog audio input.
Key Features
- DVI/HDMI to 3G-SDI/HD-SDI/SDI converter
- Image scaling, aspect and frame rate conversion
- DVI loop-through output
- Audio embedding
- Compact, 5–20 V DC
Product Information
Brand: AJA
Manufacturer: AJA
Product Line: AJA
Model: ROI-DVI
Product Type: DVI to 3G-SDI/HD-SDI/SDI video and audio converter / scaler
Dimensions and Weight
Width: 5.7 inch
Height: 4 inch
Depth: 0.9 inch
Weight: 10.58 ounce
Additional Information
Frequency: 50/60 hertz
Low Voltage Power: DC 5 - 20 V
Max Operating Temperature: 104 degree Fahrenheit
Max Power Consumption: 8 watt
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Terminals: (1) x 3G-SDI output - BNC, (1) x audio line-in - mini-phone stereo 3.5 mm, (1) x DVI-D input, (1) x DVI-D output, (1) x REF input - BNC, (1) x USB
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Manufacturer Limited Warranty: 5 years
