Product Information

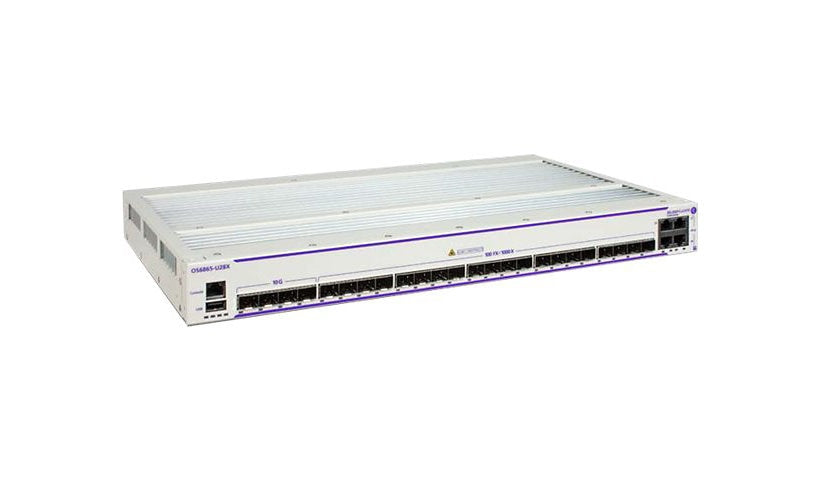

Alcatel-Lucent's OmniSwitch OS6865-U28X-US is a hardened Layer 3 switch rated -40 to 165 °F, with twenty Gigabit SFP ports, four 10G SFP+ ports, four Gigabit RJ-45 ports with up to 75 W HPoE (280 W budget) and two 20G stacking ports. It ships with one power supply, with a second optional for 1+1 redundancy.
Key Features
- 20 x Gigabit SFP ports
- 4 x 10G SFP+ ports
- 4 x Gigabit RJ-45 HPoE, up to 75 W
- 280 W PoE budget
- 2 x 20G stacking ports
- Hardened, -40 to 165 °F
- 1 PSU installed, 1+1 optional
Product Information
Brand: Alcatel-Lucent
Manufacturer: Alcatel Internetworking
Product Line: Alcatel-Lucent OmniSwitch
Model: 6865-U28X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2, SNMP 3, TFTP
Routing Protocol: BGP, GRE, IGMP, IGMPv2, IGMPv3, OSPF, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPv2, VRRPv3
Authentication Method: LDAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: MD5, PKI
Performance: Switching capacity: 208 Gbps, Switching fabric bandwidth: 224 Gbps
Capacity: IPv4 routes: 64000, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 48K entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, Anti-spoofing protection, ARP support, Bidirectional Forwarding Detection (BFD), Bridge protocol data unit (BPDU), Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DHCP support, DiffServ support, Digital Diagnostics Monitoring (DDM), Energy Efficient Ethernet, Fanless, Flow control, IGMP snooping, Intermediate System to Intermediate System (IS-IS), Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), Open Shortest Path First (OSPF), OpenFlow support, Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Rugged, sFlow, Shortest Path Bridging (SPB), Spanning Tree Protocol (STP) support, Static routing, STP loop guard, STP Root Guard, Tagged VLAN, Time Domain Reflectometry (TDR), Traffic shaping, Tunneling, Uni-Directional Link Detection (UDLD), Virtual Chassis technology, Virtual Route Redundancy Protocol (VRRP) support, VLAN Double Tagging (Q-in-Q), VLAN support, VPN support
Connectivity
Ports: 28
Port Quantity: 20
Port Type: Gigabit SFP
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Ports (3rd) Quantity: 4
Ports (4th) Quantity: 2
Ports (4th) Type: 20 Gigabit (stacking)
Interface Provided: 1 x console RJ-45, 1 x USB Type A, 2 x 20Gbit LAN stacking, 20 x 1000Base-X SFP, 4 x 10GBase-X SFP+, 4 x Gigabit LAN RJ-45 HPoE - 75 W
Power Over Ethernet (PoE): High PoE / PoE+
QSFP Slots: 10/100/1000 (PoE+)
Power
Device Type: Internal power supply
Power Consumption Operational: 75.9 watt
PoE Budget: 280 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 2 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 176 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 2
Status Indicators: PoE, Port status, Power, System
Rack Mounting Kit: Optional
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.6 inch
Weight: 13.84 lbs
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1aq, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
Compliant Standards: ANATEL, AS/NZS 3548 Class A, BSMI, C-Tick, CAN/CSA C22.2 No. 60950-1-03, CCC, CDRH, EAC, EN 50121-4, EN 50581, EN 60825-1, EN 60825-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-12, EN 61000-4-16, EN 61000-4-2, EN 61000-4-29, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4, EN55022, EN55024, FCC CFR47 Part 15 B, GS, ICES-003 issue 5 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30, IEC 60945, IEC 60950-1, IEC 61850-3, IEEE 1613, IP30, KCC, NEMA TS-2, NOM-019-SCFI, Plug and Play, RoHS, UL 1604, UL 508, UL 60950-1 Second Edition, UL-AR, VCCI, WEEE
ENERGY STAR Certified: No
