Product Information

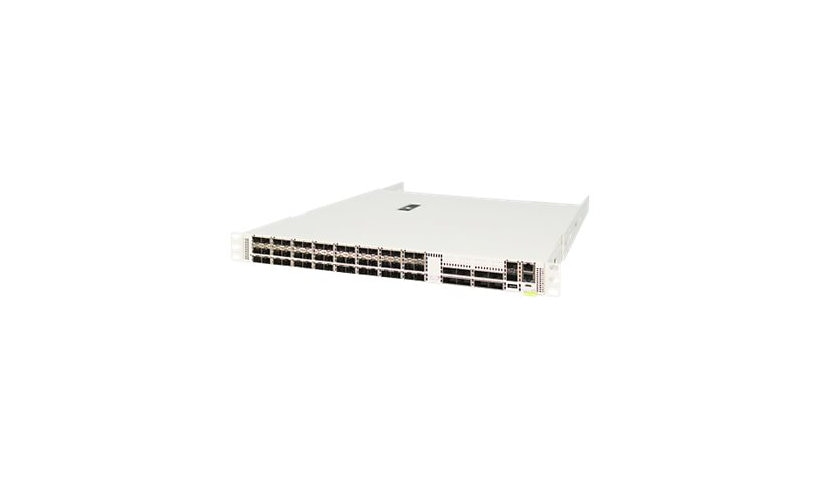

Alcatel-Lucent's OmniSwitch OS6900V48 is a stackable Layer 3 switch with 48 1/10/25G SFP28 ports and eight 40/100G QSFP28 ports. It offers 4 Tbps of non-blocking capacity at under 600 ns of latency, ships with two hot-plug power supplies and bidirectional airflow, and is TAA compliant.
Key Features
- 48 x 1/10/25G SFP28 ports
- 8 x 40/100G QSFP28 ports
- 4 Tbps non-blocking, under 600 ns
- Stackable, DCB
- 2 hot-plug power supplies, 1+1
- Bidirectional airflow, TAA compliant
Product Information
Brand: Alcatel-Lucent
Manufacturer: Alcatel Internetworking
Product Line: Alcatel-Lucent OmniSwitch
Model: OS6900V48
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, JSON, LDAP, NTP, OAM, RADIUS, RMON, RSTP, SCP, SFTP, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol: BGP, BGP-4, BGP-MP, Bidirectional Forwarding Detection (BFD), Bidirectional PIM, CIDR, DVMRP, GRE, IGMP, IGMPv2, IGMPv3, IS-IS, IS-ISv4, MLD, MLDv2, MSTP, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, RSTP, SAP, Static IP routing, STP, VRRP, VRRPv2, VRRPv3
Authentication Method: Extensible Authentication Protocol (EAP), LDAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Forwarding rate (64-byte packets): 2976 Mbps, Latency: < 600 ns, Non-blocking switching capacity: 4 Tbps
Capacity: Buffer capacity (MB): 32
Jumbo Frame Support: Yes
Stackable: Stackable
Features: 802.1x authentication, Access Control List (ACL) support, ARP support, BOOTP support, Bootstrap Router (BSR) Mechanism, BPDU protection, Class of Service (CoS), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP snooping, DiffServ support, Digital Diagnostics Monitoring (DDM), DNS support, Edge Virtual Bridging (EVB), Ethernet Virtual Connections (EVC), Ethernet Virtual Private Network (EVPN), Fabric Provided MAC Addressing (FPMA), FCoE Initialization Protocol (FIP), Flow control, Head-of-line (HOL) Blocking Prevention, In-Service Software Upgrade (ISSU), IP address filtering, ISL support, Link Aggregation Control Protocol (LACP), LLDP support, Loopback, Management Information Base (MIB), Media Endpoint Discover (MED), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OCSP support, OpenFlow support, Per-VLAN Spanning Tree Plus (PVST+), Point-to-Point Protocol (PPP), Port mapping, Port mirroring, Port Security, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), Protocol Independent Multicast (PIM), Q-in-Q tunneling, Quality of Service (QoS), Remote Desktop Protocol (RDP) support, sFlow v5, Shortest Path Bridging (SPB), Single Rate Three Color Marking (SRTCM), Source-Specific Multicast (SSM), STP Root Guard, SVLAN tagging, Syslog support, Transparent (N_Port ID Virtualization - NPIV) mode support, Two Rate Three Color Marker (trTCM), UDP support, Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), Virtual Output Queuing (VOQ), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Tagging, VXLAN tunnel endpoints (VTEP) support
Connectivity
Ports: 56
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 40/100 Gigabit QSFP28
Interface Provided: 1 x console RJ-45 management, 1 x management RJ-45, 1 x USB Type A, 48 x 1/10/25Gbit LAN SFP28, 8 x 40/100Gbit LAN QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 532 watt
Power Provided: 650 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Intel
Processor Type: Xeon D
Processor Number: D-1518
Clock Speed: 2.2 GHZ
RAM Installed: 8 GB
Flash Memory Installed: 64 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Bidirectional airflow
Status Indicators: Link/activity, Power, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 20.69 lbs
Certifications and Listing
Compliant Standards: AS/NZ TS-001, AS/NZS 3548 Class A, AS/NZS 60950, CAN/CSA C22.2 No. 60950-1-03, CDRH, CISPR 22 Class A, Directive 89/336/EEC, EAL 2, EN 55022 Class A, EN 60825-1, EN 60825-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024:1998+A1:2001+A2:2003, EN60950-1:2001, ErP, FCC CFR47 Part 15 A, GOST, ICES-003 Class A, IEC 60950-1:2001, JITC, UL 60950, UL-AR, UL-GS, VCCI Class A
Compliant Standards: IEEE 1588-2008, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1aq, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032, ITU-T Y.1344, X.509
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
