Product Information

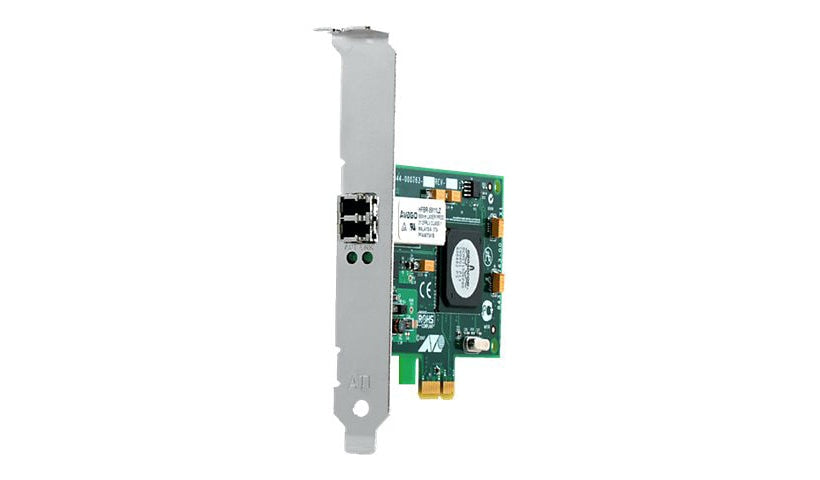

The Allied Telesis AT-2914SX/LC is a single port Gigabit fiber network card with a 1000Base-SX duplex LC multimode port on a PCI Express x1 interface. It supports link aggregation with LACP, smart load balancing, VLANs, jumbo frames, IPv6, PXE 2.1 and UEFI boot and Wake on LAN, and can be managed over SNMP. It works with Linux and Windows and includes full height and low profile brackets. This is the federal government (-901) version.
Key Features
- 1 x 1000Base-SX fiber port
- Duplex LC multimode
- PCI Express x1
- LACP and load balancing
- PXE and UEFI boot
- Both brackets included
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis
Model: AT-2914SX/LC
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Cable Type: Ethernet 1000Base-SX
Remote Management: SNMP
Data Transfer Rate: 1 GBps
Operating System Required: Linux, Microsoft Windows Vista / 7 / 8 / 10
Features: IPv6 support, Jumbo Frames support, LACP support, Link Aggregation, Link Aggregation Control Protocol (LACP), PXE 2.1 support, Smart Load Balancing (SLB), UEFI support, VLAN support, Wake On LAN (WOL)
Connectivity
Port Quantity: 1
Interface Provided: 1 x 1000Base-SX - LC multi-mode - x 2
Network & Adapter Ports: 1000Base-SX
Host Interface: PCI Express x1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Dimensions and Weight
Height: 2.7 inch
Width: 3.5 inch
Weight: 2.4 ounce
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards #2: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3z
Compliant Standards: C-Tick, EN55022 Class A, EN55024, RoHS, TUV, UL, VCCI
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3z
Warranty
Service Activation: No
