Product Information

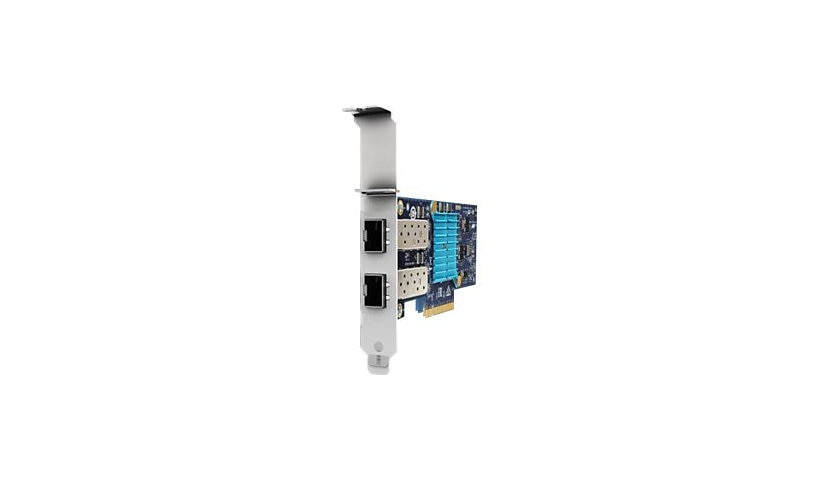

The Allied Telesis AT-ANC10Sa/2 (AT-ANC10SA/2-901) is a dual port 10 Gigabit SFP+ network card on a PCIe 2.0 x8 interface, built for virtualization and HPC with SR-IOV offload. It supports Data Center Bridging, link aggregation, failover, Energy Efficient Ethernet, 9,000 byte jumbo frames and remote boot, with SNMP and WMI management, drawing about 6 W. It works with Linux, Windows 10 and 11 and Windows Server 2016 and 2019. This is the TAA compliant federal government version.
Key Features
- 2 x 10G SFP+ ports
- PCIe 2.0 x8
- SR-IOV offload
- DCB and link aggregation
- About 6 W power draw
- TAA compliant
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis
Model: AT-ANC10Sa/2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Remote Management: SNMP, WMI
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: 9000
Operating System Required: Linux, Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Features: Adapter Fabric Extender (AFEX), Auto-negotiation, Checksum offload support, Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Energy-Efficient Ethernet (EEE), Enhanced transmission selection (ETS), Ethernet remote boot, Extended Message-Signaled Interrupts (MSI-X), Failover protection, Flow control, Full duplex mode, Giant Send Offload (GSO), IPv6 support, Link Aggregation, Link Aggregation Control Protocol (LACP), Priority-Based Flow Control (PFC), PXE 2.1 support, Quality of Service (QoS), Quantized Congestion Notification (QCN), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Smart Load Balancing (SLB), SNMP support, TCP Segmentation Offload (TSO), Teaming support, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), VLAN support
Connectivity
PCI Specification Revision: PCIe 2.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet - SFP+
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: PCI Express 2.0 x8
Power
Power Consumption Operational: 6 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity
Dimensions and Weight
Height: 2.7 inch
Width: 6.3 inch
Weight: 2.75 ounce
Included Items
Included Accessories: Standard bracket
Certifications and Listing
Compliant Standards #2: IEEE 801.1Qau, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
Compliant Standards: ACPI 1.1, C-Tick, CSA C22.2 No. 62368-1, cULus, EN 55032 Class B, EN 55035, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN55022 Class B, EN55024, FCC Part 15, ICES-003, RoHS, TUV, UEFI, UL, UL 62368-1, VCCI Class B
Compliant Standards: IEEE 801.1Qau, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
