Product Information

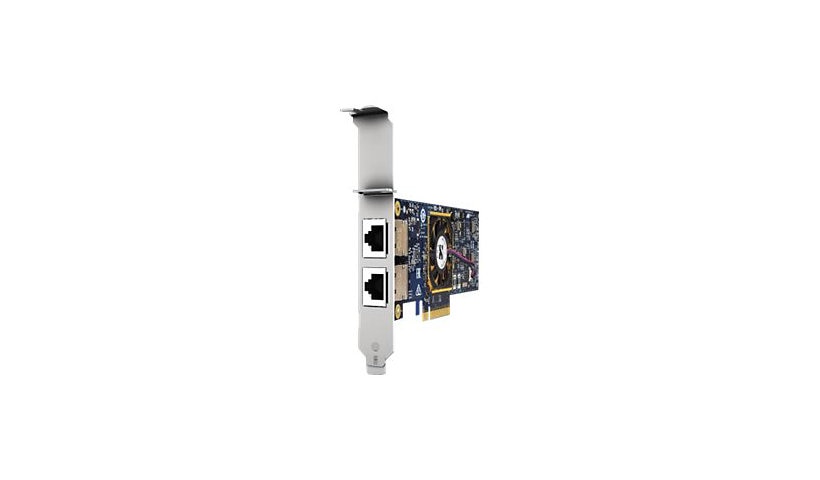

The Allied Telesis AT-ANC10T/2 (AT-ANC10T/2-901) is a dual port 10GBase-T network card on a low profile PCIe 2.0 x8 interface, with each RJ-45 port running at 1 or 10 Gb Ethernet. It supports Data Center Bridging, QoS, link aggregation, failover, Energy Efficient Ethernet, remote boot and 9,000 byte jumbo frames, with SNMP and WMI management, drawing about 12 W. It works with Linux, Windows 10 and 11 and Windows Server 2016 and 2019. This is the TAA compliant federal government version.
Key Features
- 2 x 1/10GBase-T RJ-45 ports
- PCIe 2.0 x8
- DCB and link aggregation
- Remote boot
- About 12 W power draw
- TAA compliant
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis
Model: AT-ANC10T/2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Remote Management: SNMP, WMI
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: 9000
Operating System Required: Linux, Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Features: Adapter Fabric Extender (AFEX), Auto-negotiation, Checksum offload support, Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Energy-Efficient Ethernet (EEE), Enhanced transmission selection (ETS), Ethernet remote boot, Extended Message-Signaled Interrupts (MSI-X), Failover protection, Flow control, Full duplex mode, Giant Send Offload (GSO), IPv6 support, Link Aggregation, Link Aggregation Control Protocol (LACP), Priority-Based Flow Control (PFC), PXE 2.1 support, Quality of Service (QoS), Quantized Congestion Notification (QCN), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Smart Load Balancing (SLB), SNMP support, TCP Segmentation Offload (TSO), Teaming support, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), VLAN support
Connectivity
PCI Specification Revision: PCIe 2.0
Port Quantity: 2
Interface Provided: 2 x 1/10GBase-T - RJ-45
Network & Adapter Ports: Gigabit Ethernet / 10Gb Ethernet
Host Interface: PCI Express 2.0 x8
Power
Required Voltage: 12 volt
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity
Dimensions and Weight
Height: 2.7 inch
Width: 6.3 inch
Weight: 3.2 ounce
Included Items
Included Accessories: Standard bracket
Certifications and Listing
Compliant Standards #2: IEEE 801.1Qau, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
Compliant Standards: ACPI 1.1, C-Tick, CSA C22.2 No. 62368-1, cULus, EN 55032 Class B, EN 55035, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN55022 Class B, EN55024, FCC Part 15, ICES-003, RoHS, TUV, UEFI, UL, UL 62368-1, VCCI Class B
Compliant Standards: IEEE 801.1Qau, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
