Product Information

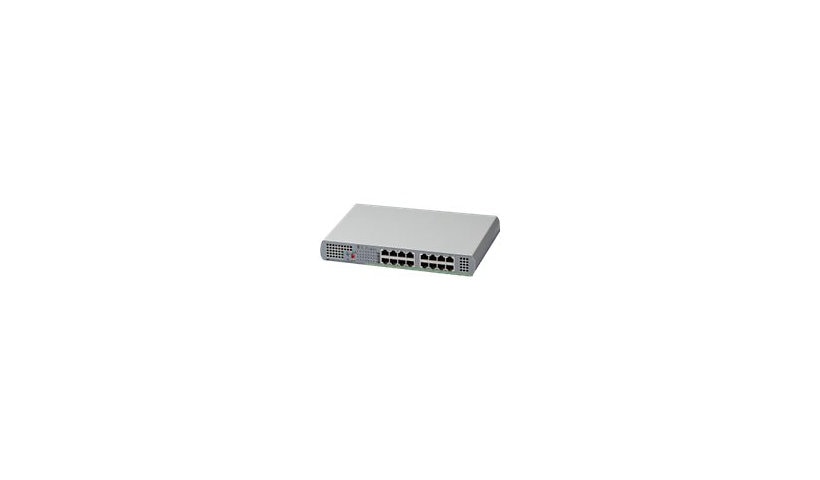

The Allied Telesis AT-GS910/16-10 is a fanless sixteen port Gigabit switch in a metal chassis with an internal power supply. It offers 32 Gbps of fabric bandwidth, loop prevention and jumbo frames, and the included hardware lets you use it on a desk, wall or rack.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching fabric
- Loop prevention, jumbo frames
- Fanless, internal power supply
- Desktop, wall or rack mount
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis AT
Model: GS910/16
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity (64-byte packet size): 23.8 Mpps, Switching fabric bandwidth: 32 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10KB
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Energy Efficient Ethernet, Fanless, Flow control, Full duplex mode, Half duplex mode, Jumbo Frames support, Loop prevention
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Height (Rack Units): 1
Status Indicators: Loop, Port status, Port transmission speed, Power
Dimensions and Weight
Height: 1.5 inch
Width: 10.4 inch
Depth: 7 inch
Weight: 3.31 lbs
Certifications and Listing
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07, CB, EAC, EN55022, EN55024, FCC Class A certified, ICES-003 Class A, IEC 60950-1, RCM, RoHS, UL, UL 60950-1 Second Edition, VCCI Class A
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
