Product Information

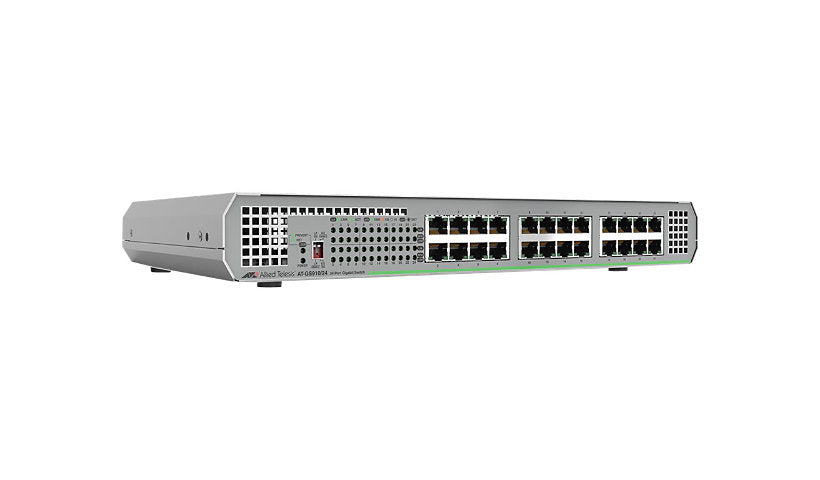

The Allied Telesis CentreCOM AT-GS910/24-10 is a fanless unmanaged switch with 24 Gigabit ports and 48 Gbps of capacity. Loop guard spots network loops and stops broadcast storms, and it sits on a desk or mounts on a wall.
Key Features
- 24 x Gigabit RJ-45 ports
- 48 Gbps switching capacity
- Loop guard protection
- Fanless, about 17 W
- Desktop or wall mount
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis CentreCOM
Model: AT-GS910/24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 48 Gbps, Throughput: 35.7 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Features: 524KB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Fanless, Flow control, Full duplex mode, Half duplex mode, Loop prevention
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Interface Provided: 24 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 17 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 13.4 inch
Depth: 8.3 inch
Weight: 4.63 lbs
Certifications and Listing
Compliant Standards: CSA C22.2 No. 60950-1-07 Second Edition, cULus, EAC, EN55022, EN55024, FCC Class A certified, ICES Class A, RCM, RoHS, UL 60950-1 Second Edition, VCCI Class A
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
