Product Information

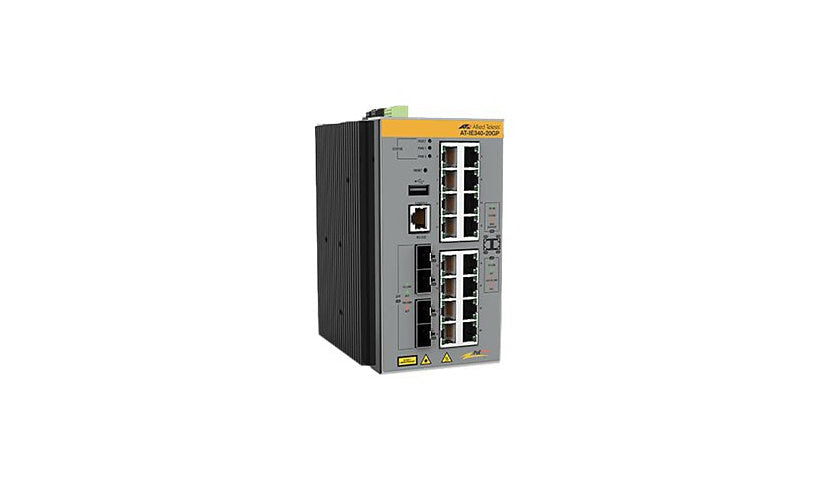

Allied Telesis' AT-IE340-20GP is a managed Layer 3 industrial switch with eight PoE+ and eight PoE Gigabit ports plus four SFP slots, on a 240 W budget. It runs AlliedWare Plus, works from -40 to 167 °F, and has alarm input and output terminals for DIN rail or wall installs. It is TAA compliant.
Key Features
- 8 x Gigabit PoE+ (30 W) ports
- 8 x Gigabit PoE (15 W) ports
- 4 x Gigabit SFP slots
- 240 W PoE budget
- Layer 3, AlliedWare Plus
- Operating range -40 to 167 °F
- TAA compliant
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis AT
Model: IE340-20GP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, RIP, RIP-2, RIPng, Static IP routing
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: DES, MD5, PEAP, RSA, SHA-1, SSL 2.0, SSL 3.0, TLS, Triple DES, TTLS
Performance: Forwarding performance: 29.7 Mpps, Switching fabric bandwidth: 40 Gbps
Capacity: Layer 2 multicast groups: 511, Layer 3 multicast groups: 256, Packet buffer size: 1.5 MB, QoS queues: 8, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: Access Control List (ACL) support, BOOTP support, DHCP client, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, Ethernet Protection Switched Ring (EPSRing), Fanless, Flow control, GARP VLAN Registration Protocol (GVRP), High Availability, IGMP snooping, IPv6 support, MAC address filtering, MLD snooping, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Reset button, SNMP trap, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Weighted Round Robin (WRR) queuing
Software Type: Alliedware Plus
Connectivity
Ports: 20
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 8
Ports Type (2nd): 10/100/1000 (PoE)
Ports (3rd) Quantity: 4
Interface Provided: 1 x alarm input 2 pin terminal block, 1 x alarm output 2 pin terminal block, 1 x console RJ-45 management, 1 x USB 2.0 Type A, 4 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE - 15 W, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
QSFP Slots: Gigabit SFP
Power
Device Type: Internal power supply
PoE Budget: 240 watt
Memory and Processor
RAM Installed: 512 megabyte
Memory Technology: DDR SDRAM
Flash Memory Installed: 128 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Fault, Link/activity, PoE, Power 1, Power 2
Dimensions and Weight
Height: 6 inch
Width: 3.6 inch
Depth: 5.5 inch
Certifications and Listing
Compliant Standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS 60950-1, AS/NZS 62368-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, China RoHS, CISPR 11 class A, CISPR 32 Class A, CSA C22.2 No. 61010-1, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-2, EN 61000-6-4 Class A, EN IEC 61000-3-2, EN/IEC 61131-2, EN/IEC 61326-1, EN/IEC/UL 61010-1, EN/IEC/UL 61010-2-201, FCC, FCC CFR47 Part 15 B Class A, ICES, ICES-003 issue 6 Class A, IEC 60068-2-27, IEC 60068-2-31 Class T2.3, IEC 60068-2-6, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-29, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IP30, NEMA TS-2, RCM, RoHS, TEC, UL, VCCI, VCCI Class A, WEEE
TAA Compliant: Yes
