Product Information

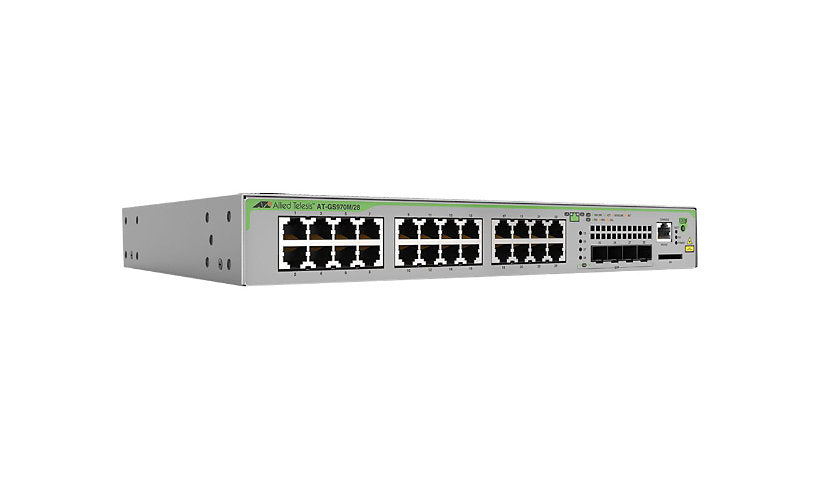

Allied Telesis' CentreCOM AT-GS970M/28 is a managed edge switch with 24 Gigabit RJ-45 ports and four SFP uplinks. It offers 56 Gbps of switching fabric, Layer 3 features, 802.1x and AMF network management.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x SFP uplinks
- 56 Gbps fabric, 41.7 Mpps
- Layer 3 features, AMF
- 802.1x, ACL
- Desktop, about 26 W
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis CentreCOM
Model: AT-GS970M/28
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SNMP 6, SSH 6, Telnet, TFTP
Routing Protocol: CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP, RIP-2, Static IPv6 routing
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, TACACS+
Encryption: 128-bit AES, 192-bit AES, 224-bit SHA-2, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, DES, DSA, ECDSA, MD5, PEAP, RNG, RSA, SHA-1, SSL 2.0, TLS, Triple DES, TTLS
Performance: Forwarding performance: 41.7 Mpps, Switching fabric bandwidth: 56 Gbps
Capacity: Priority queues: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10000 bytes
Features: 1.5MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Allied Telesis Management Framework (AMF), ARP support, Authentication, Authorization and Accounting (AAA), Auto-negotiation, BOOTP support, Bridge protocol data unit (BPDU), Control Plane Prioritization (CPP), DHCP snooping, DHCP support, DiffServ support, Digital Diagnostics Monitoring (DDM), Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Ethernet Protection Switched Ring (EPSRing), Fanless, Flow control, Full duplex mode, IGMP snooping, Internet Control Message Protocol (ICMP), IP source guard, Link Aggregation Control Protocol (LACP), LLDP support, Loop prevention, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Network Access Control (NAC), Network Timing Protocol (NTP), Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Secure Copy (SCP), SNMP trap, STP Root Guard, Syslog support, Uni-Directional Link Detection (UDLD)
Connectivity
Ports: 28
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): SFP (mini-GBIC) (uplink)
Interface Provided: 1 x console RJ-45, 24 x 1000Base-T RJ-45, 4 x 1000Base-X SFP uplink
Power
Device Type: Internal power supply
Power Consumption Operational: 26 watt
Memory and Processor
Flash Memory Installed: 64 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Built-in Devices: SD card reader, SDHC card reader
Dimensions and Weight
Height: 1.7 inch
Width: 13.4 inch
Depth: 9.1 inch
Weight: 5.29 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: China RoHS, CISPR Class A, cUL, cULus, DRBG, EN 60825-1, EN 60950-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Class A certified, HMAC, RoHS, TUV, UL, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
