Product Information

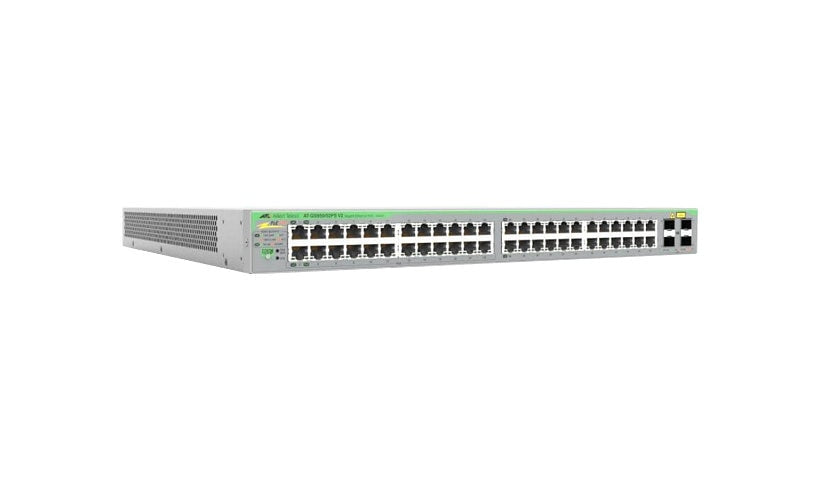

Allied Telesis' AT-GS950/52PS V2 is a smart managed switch with 24 Gigabit PoE+ ports, 24 more Gigabit ports and four Gigabit SFP ports. It has a 370 W PoE budget and 104 Gbps of switching capacity, with 802.1x and Energy Efficient Ethernet, and it is TAA compliant.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 24 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP ports
- 370 W PoE budget
- 104 Gbps switching, 77.38 Mpps
- Desktop, rack or wall mount, TAA
Product Information
Brand: Allied Telesis
Manufacturer: Allied Telesis
Product Line: Allied Telesis AT
Model: GS950/52PS V2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, ICMP, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, MSTP, RSTP, STP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS
Performance: Forwarding rate (1000Mbps): 1488000 packets per second, Forwarding rate (100Mbps): 148800 packets per second, Forwarding rate (10Mbps): 14880 packets per second, Forwarding rate: 77.38 Mpps, Switching capacity: 104 Gbps
Capacity: Packet buffer size: 1.5 MB, Virtual interfaces (VLANs): 256, VLAN IDs: 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Features: 802.1x authentication, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DHCP client, Energy-Efficient Ethernet (EEE), Flow control, FTP client, Full duplex mode, Half duplex mode, Head-of-line (HOL) Blocking Prevention, IGMP snooping, LACP support, LLDP support, Management Information Base (MIB) II, Neighbor Discovery Protocol (NDP), Port mirroring, SNTP support, Syslog support
Smart: Yes
Connectivity
Ports: 52
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 24
Ports Type (2nd): 10/100/1000
Ports (3rd) Quantity: 4
Interface Provided: 24 x 10/100/1000 Base-T RJ-45, 24 x 10/100/1000 Base-T RJ-45 PoE+, 4 x 1000Base-X SFP
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1000Base-X
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Electric Current Required: 10 A
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 32 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Airflow Direction: Side to side airflow
Status Indicators: Link/activity, PoE, PoE max, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 17 inch
Weight: 13.45 lbs
Included Items
Included Accessories: Rubber feet
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: ANATEL, C-Tick, CAN/CSA-C22.2 No. 62368-1, China RoHS, CISPR 22 Class A, CISPR 32, CSA, cUL, Directive 2011/65/EU, Directive 2015/863, EMI, EN 55032 Class A, EN 62368, EN 62368-1, EN55022, EN55024, EU RoHS, FCC Part 15 B Class A, ICES, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2:2008, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, IEC/EN 60825-1, IEC/EN 60825-2, IEC/EN 60950-1, JIG, NOM, RCM, RoHS, TEC, UL 62368, UL 62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
