Product Information

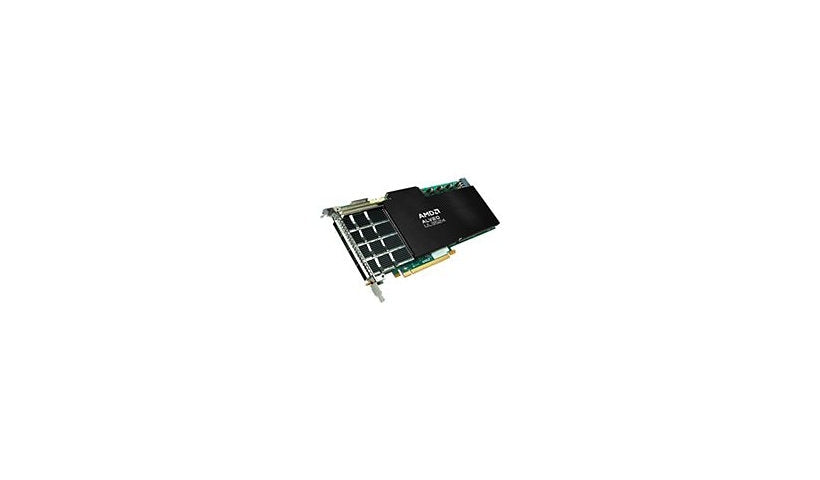

The AMD Alveo UL3524 is a PCIe plug-in application accelerator built on a Virtex UltraScale+ FPGA. It has 16 GB of DDR4, four QSFP-DD ports for 10GbE or 25GbE and transceiver latency under 3 ns, with passive cooling. This is an accelerator card, not a CPU.
Key Features
- Virtex UltraScale+ FPGA, 787000 LUTs, 1680 DSP slices
- 16 GB DDR4 SDRAM
- 4 x QSFP-DD for 10GbE or 25GbE, 2 x micro-USB management
- Transceiver latency under 3 ns
- PCIe 4.0 x8 plug-in card, passive cooling
- 180 W operational power
Product Information
Brand: AMD
Manufacturer: Xilinx
Product Line: AMD Alveo
Model: UL3524
Product Type: Application accelerator
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: TCP, UDP
Capacity: Block RAM (MB): 76, DSP Slices: 1680, Look-up tables (LUTs): 787000, Registers: 1722000, UltraRAM (MB): 180
Network Device: Transceiver latency: < 3 ns
Features: Field Programmable Gate Array, Passive cooling
Connectivity
Ports: 4
Interface Provided: 2 x management (micro-USB), 4 x 10Gb Ethernet/25Gb Ethernet - QSFP-DD
Power
Power Consumption Operational: 180 watt
Memory and Processor
Processor Type: Virtex UltraScale+
Processors Installed: 1
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 72 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 8 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Port status
Dimensions and Weight
Height: 4.4 inch
Width: 0.6 inch
Depth: 10 inch
Weight: 29.34 ounce
Certifications and Listing
Compliant Standards: BSMI Class A, C-Tick, CAN ICES-3(A)/NMB3(A), China RoHS, EMC, EN 62368-1:2020/A11:2020, FCC, FCC Class A certified, KCC Class A, LVD 2014/35/EU, MSIP, UKCA, UL, VCCI, VCCI Class A, WEEE
ENERGY STAR Certified: No
TCO Certified: No
