Product Information

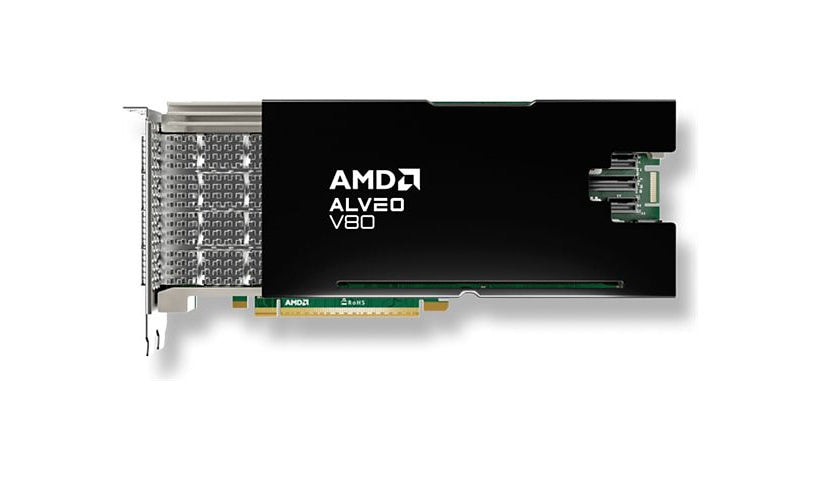

The AMD Alveo V80 is a PCIe plug-in compute accelerator with 32 GB of HBM, built for memory intensive data center and HPC workloads. It provides four QSFP56 ports supporting 10, 25, 40 or 50 GbE with 820 Gbps of network bandwidth, plus MACsec and IPSec support. This is an accelerator card, not a CPU.
Key Features
- 32 GB HBM DRAM, 2.6 million LUTs, 10848 DSP slices
- ARM Cortex-A72 and Cortex-R5F processors, 8 GB DDR4 listed
- 4 x QSFP56 for 10/25/40/50 GbE, 820 Gbps bandwidth
- PCIe 4.0 x16, 3 x MCIO expansion ports, 1 DIMM slot
- MACsec and IPSec support
- Passive cooling, 190 W operational power
Product Information
Brand: AMD
Manufacturer: Xilinx
Product Line: AMD Alveo
Model: V80
Product Type: Application accelerator
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet
Network Standard: IPSec
Capacity: Block RAM (MB): 132, DSP Slices: 10848, HBM DRAM (GB): 32, Look-up tables (LUTs): 2600000, System Logic Cells (K): 5631, Total PL memory (Mb): 752, UltraRAM (MB): 541
Network Device: Bandwidth: 820 Gbps
Features: MACsec support, Passive cooling
Connectivity
Ports: 4
Interface Provided: 1 x micro-USB, 4 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/50Gb Ethernet - QSFP56
Expansion Slots: 1 (total) / 1 (free) x DIMM 288-pin, 3 (total) / 3 (free) x MCIO expansion port
Power
Power Consumption Operational: 190 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72 / Cortex-R5F
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 8 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Port status
Dimensions and Weight
Height: 4.4 inch
Width: 0.4 inch
Depth: 10 inch
