Product Information

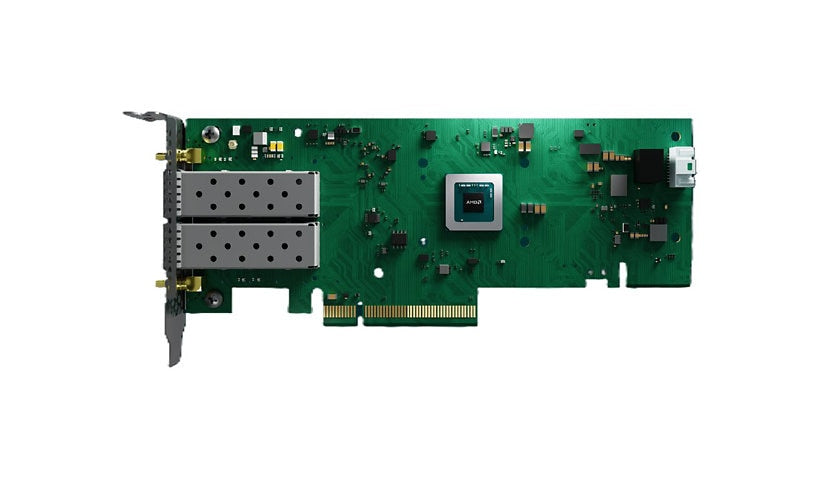

The AMD Solarflare X4522 (X4522-PLUS-5YW) is a dual port SFP56 network card on a PCIe 5.0 x8 interface, with each port running at 1, 10, 25 or 50 Gb Ethernet. It comes with Solarflare Onload software and offers NC-SI and PLDM out of band management, UEFI PXE boot, passive cooling with reverse airflow support and upgradable firmware, in a half height, half length card. It supports Red Hat Enterprise Linux and Ubuntu.
Key Features
- 2 x 50GbE SFP56 ports
- PCIe 5.0 x8
- Solarflare Onload software
- Out of band management
- Passive cooling
- Half height, half length
Product Information
Brand: AMD
Manufacturer: Xilinx
Product Line: AMD Solarflare
Model: X4522
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Remote Management: PLDM
Operating System Required: Red Hat Enterprise Linux, Ubuntu
Features: Firmware upgradable, Half-height, half-length (HHHL), MCTP over PCIe VDM, MCTP over SMBus, Network Controller Sideband Interface (NC-SI), Out-of-band management, Passive cooling, Reverse airflow support, UEFI PXE Boot, UEFI support
Software Type: Solarflare Onload
Connectivity
PCI Specification Revision: PCIe 5.0
Port Quantity: 2
Interface Provided: 2 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP56
Network & Adapter Ports: 50 Gigabit SFP56
Host Interface: PCI Express 5.0 x8
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 8 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Width: 0.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: ANSI/UL 62368-1, BSMI Class A, CAN ICES-3(A)/NMB3(A), CMIM, CSA C22.2 No. 62368-1, Directive 2014/30/EU, Directive 2014/35/EU, EN 62368-1, FCC Part 15 B Class A, IEC 62368-1, KC Class A, RCM, ROHS Directive 2011/65/EU, UKCA, VCCI Class A ITE, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
