Product Information

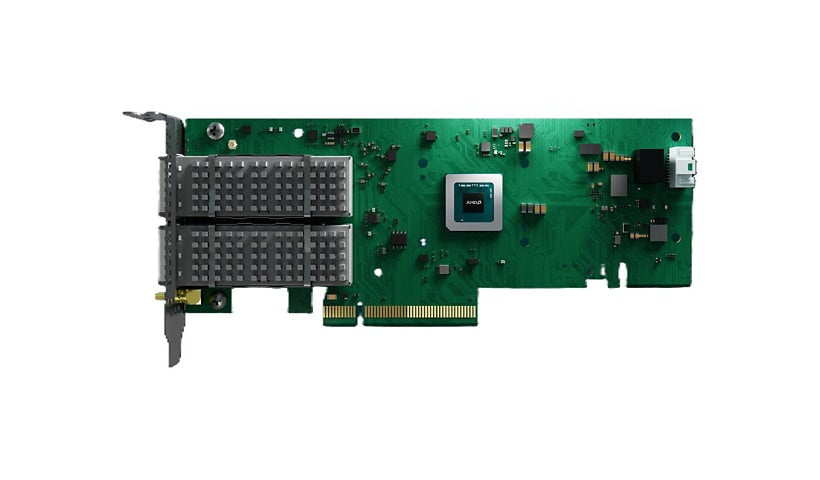

The AMD Solarflare X4542 (X4542-PLUS-5YW) is a dual port QSFP56 network card on a PCIe 5.0 x8 interface, with each port running at 10, 25, 40, 50 or 100 Gb Ethernet. It comes with Solarflare Onload and TCP Direct for low latency applications, and offers NC-SI and PLDM out of band management, UEFI PXE boot and passive cooling with reverse airflow support, in a half height, half length card. It supports Red Hat Enterprise Linux and Ubuntu.
Key Features
- 2 x 100GbE QSFP56 ports
- PCIe 5.0 x8
- Onload and TCP Direct
- Out of band management
- Passive cooling
- Half height, half length
Product Information
Brand: AMD
Manufacturer: Xilinx
Product Line: AMD Solarflare
Model: X4542
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet
Remote Management: PLDM
Operating System Required: Red Hat Enterprise Linux, Ubuntu
Features: Firmware upgradable, Half-height, half-length (HHHL), MCTP over PCIe VDM, MCTP over SMBus, Network Controller Sideband Interface (NC-SI), Out-of-band management, Passive cooling, Reverse airflow support, TCP Direct, UEFI PXE Boot, UEFI support
Software Type: Solarflare Onload
Connectivity
PCI Specification Revision: PCIe 5.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/50Gb Ethernet/100Gb Ethernet - QSFP56
Network & Adapter Ports: 100 Gigabit QSFP56
Host Interface: PCI Express 5.0 x8
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 8 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Width: 0.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: ANSI/UL 62368-1, BSMI Class A, CAN ICES-3(A)/NMB3(A), CMIM, CSA C22.2 No. 62368-1, Directive 2014/30/EU, Directive 2014/35/EU, EN 62368-1, FCC Part 15 B Class A, IEC 62368-1, KC Class A, RCM, ROHS Directive 2011/65/EU, UKCA, VCCI Class A ITE, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
