Product Information

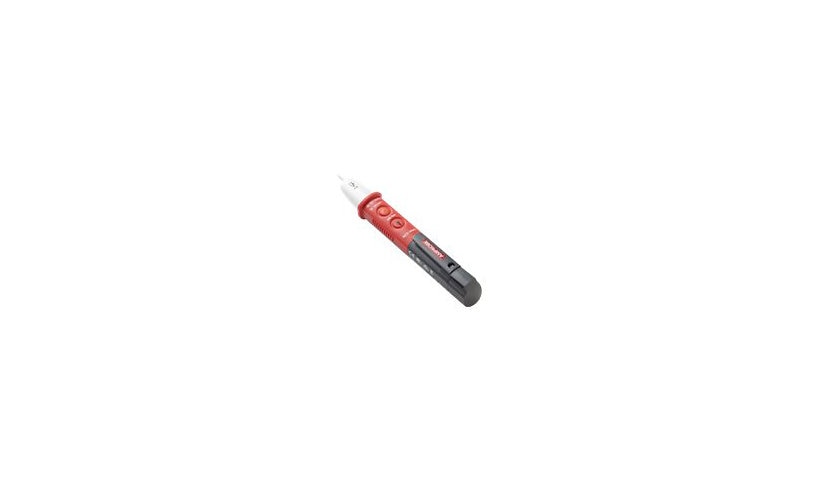

The Amprobe NCV-1040 is a pocket size non-contact voltage tester that safely detects AC voltage through wire insulation without breaking into the circuit. It is safety rated CAT IV 1000 V, is IP65 water and dust resistant and works indoors and out. It gives audible and LED alerts, detects magnetic solenoids and identifies polarity, and has an LED flashlight, low battery indicator and auto power off. Two AAA batteries are included. It is an electrical tester rather than a network tester.
Key Features
- Non-contact AC voltage
- Up to 1000 V
- CAT IV 1000 V rated
- IP65 water and dust
- Beep and LED alerts
- Flashlight, 2 AAA incl.
Product Information
Tests, Tools and Measurements: AC voltage, Cable defects, Magnetic solenoid, Polarity
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Amprobe
Model: NCV-1040
Product Type: Probe
Packaged Quantity: 1
Network and Communication
Features: Audible (buzzer) voltage indication, Automatic power off, Built-in LED flashlight, Low battery indicator, Up to 1000 volts measurement, Visual (LED) voltage indication
Power
Batteries Required: 2
Supported Battery Size: AAA
Batteries Included: 2
Battery Chemistry: Alkaline
Battery Voltage: 1.5 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 80% RH
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 104 degree Fahrenheit
Dimensions and Weight
Height: 6.1 inch
Width: 0.9 inch
Depth: 1.1 inch
Weight: 2.19 ounce
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1 3rd Edition, IEC 61326-1, IP65, UL 61010-1 2nd Edition
