Product Information

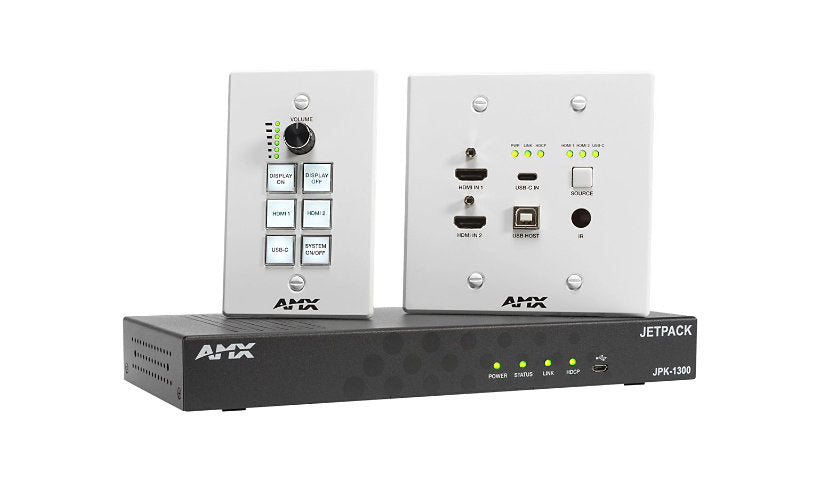

AMX Jetpack is an affordable switching, transport and control solution for K-12 classrooms and small to medium meeting rooms, with simple room controls, multiple video inputs and voice lift so everyone can be heard. The JPK-1300 combines 4K60 4:2:0 HDMI and USB-C switching with HDBaseT distance transport, room control, wall-plate access and a built-in 2 x 25 W audio amplifier, with zero programming required. It includes a keypad, receiver and wall-plate transmitter, and supports HDCP 2.2, Power over Cable and USB pass-through.
Key Features
- 3x1 switcher with HDBaseT transport
- 4K60 4:2:0, HDMI and USB-C inputs
- Built-in 2 x 25 W amplifier
- Keypad room control, no programming
- Keypad, receiver and wall-plate transmitter included
Product Information
Brand: AMX
Manufacturer: AMX
Product Line: AMX Jetpack
Model: JPK-1300
Manufacturer Part Number: AMX-VTK0001
Product Type: 3x1 switcher / HDBaseT transmitting system / control panel
Technical Information
Features: 4K60 4:2:0 signal support, Built-in 2 x 25 watts audio amplifier, HDBT distance transport, HDCP 2.2 compliant, Power Over Cable (POC) suppport, USB pass-through, Web interface
Included Item
Packaged Quantity: 1
Additional Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 20 - 90% RH (non-condensing)
Kit Content: (1) x keypad, (1) x receiver unit, (1) x wallplate transmitter
Terminals: (1) x AMP output - 4 pin Phoenix type - receiver, (1) x audio line-in / microphone - 3 pin Phoenix type - receiver, (1) x audio line-out - 3 pin Phoenix type - receiver, (1) x AV link - RJ-45 - receiver, (1) x AV link - RJ-45 - transmitter, (1) x control - RJ-45 - transmitter, (1) x HDMI output - 19 pin HDMI Type A - receiver, (1) x infrared output - mini-phone stereo 3.5 mm - receiver, (1) x network - RJ-45 - receiver, (1) x relay - 3 pin Phoenix type - receiver, (1) x remote mute - 2 pin Phoenix type - receiver, (1) x RS-232 - 3 pin Phoenix type - receiver, (1) x USB - 4 pin USB type A - receiver, (1) x USB - Micro-USB Type B - receiver, (1) x USB - Micro-USB Type B - transmitter, (1) x USB 2.0 - USB-C - transmitter, (1) x USB Host - 4 pin USB type B - transmitter, (2) x HDMI input - 19 pin HDMI Type A - transmitter
ENERGY STAR Certified: No
Manufacturer Limited Warranty: 3 year limited warranty
