Product Information

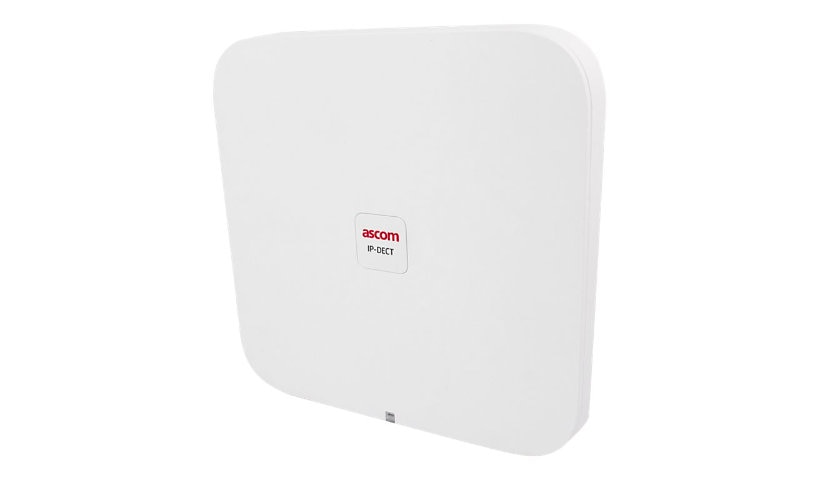

The Ascom IPBS3 is an IP-DECT base station with an internal antenna that connects DECT handsets to an IP-PBX over the LAN. It has two 10/100 PoE ports, encrypts all calls with rekeying, and draws about 4 W. This is a DECT telephony base station, not a Wi-Fi access point.
Key Features
- IP-DECT base station
- Internal antenna
- 2 x 10/100 RJ-45, PoE
- Encrypted DECT calls
- About 4 W
- 14 to 131 °F
Product Information
Brand: Ascom
Manufacturer: ASCOM
Product Line: Ascom IP-DECT
Model: IPBS3 with internal antenna
Product Type: Wireless access point
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: DECT
Capacity: Maximum concurrent channels: 8
VoIP: Yes
VoIP Protocols: H.225, H.235, H.245, H.323 v4, H.450.1, H.450.2, H.450.3, H.450.4, H.450.6, H.450.7, H.450.8, H.450.9
Voice Codec: G.711A/µ, G.722.2, G.729a, G.729ab
Connectivity
Interface Provided: 2 x 100Base-TX (PoE)
Telephony Interfaces: DECT
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 4 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 15 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 6.7 inch
Width: 6.7 inch
Depth: 1.5 inch
Weight: 14.11 ounce
Certifications and Listing
Compliant Standards: AS/NZS 62368-1, CAN/CSA-C22.2 No. 62368-1, EN 61000-4-2, EN 61000-4-3, FCC Part 15 B, FCC Part 15 D, UL 62368-1
Compliant Standards: IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
