Product Information

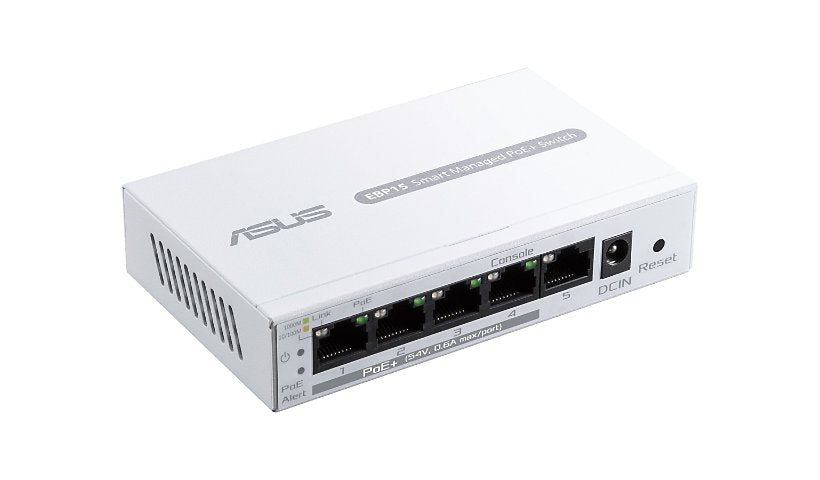

ASUS' ExpertWiFi EBP15 is a compact managed desktop switch with five ports, four of them PoE+ at up to 30 W, and a 60 W PoE budget. It supports AiMesh, QoS, IGMP snooping, port mirroring and loop prevention, and it is TAA compliant.
Key Features
- 5 x RJ-45 ports
- 4 x PoE+ ports, 30 W
- 60 W PoE budget
- AiMesh, QoS, IGMP snooping
- Web UI, loop prevention
- Desktop, external adapter, TAA
Product Information
Brand: ASUS
Manufacturer: Asus
Product Line: ASUS ExpertWiFi
Model: EBP15
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Switching Type: Fast Ethernet
Manageable: Yes
MAC Address Table Size: 8K entries
Features: ASUS AiMesh, Auto Negotiation, Class of Service (CoS), Firmware upgradable, IGMP snooping, IPv4 support, IPv6 support, Loop detection, Loop prevention, MDI/MDI-X switch, Port mirroring, QoS, Web-based UI
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000
Interface Provided: 1 x 100Base-TX RJ-45, 4 x 100Base-TX RJ-45 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 60 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Activity, Link, PoE alert, Power, Speed
Dimensions and Weight
Height: 1 inch
Width: 3 inch
Depth: 4.8 inch
Weight: 8.75 ounce
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
