Product Information

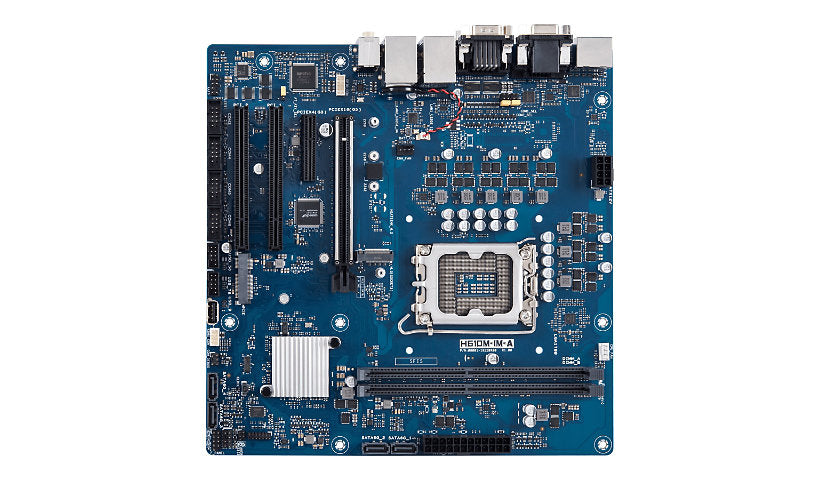

The ASUS H610M-IM-A is a micro ATX board for 12th, 13th and 14th gen Intel Core, Pentium and Celeron processors on LGA1700. It supports up to 64 GB of dual channel DDR4 at 3200 MHz, has one M.2 slot, four SATA ports, Gigabit LAN and a watchdog timer. A SATA cable, M.2 screws and an I/O shield are included.
Key Features
- Intel H610 chipset, LGA1700, micro ATX
- 2 x DDR4, up to 64 GB, up to 3200 MHz
- 1 x M.2 and 4 x SATA-600
- Gigabit LAN (Intel I219V / Realtek RTL8111H)
- Watchdog timer, Realtek ALC897 audio
- SATA cable, 2 M.2 screws and I/O shield included
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS
Model: H610M-IM-A
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Dual channel memory architecture
Connectivity
Network: Gigabit Ethernet
Audio Output: High Definition Audio
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x Mini PCIe, 1 x PCIe 3.0 x4 (x1 mode), 1 x PCIe 5.0 x16, 2 x DIMM 288-pin, 2 x PCI
Power
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Memory and Processor
Controller Type: Intel I219V / Realtek RTL8111H
Processor Socket: LGA1700 Socket
Supported Memory Speed: 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Memory Slots: 2 DIMM slots
Mainboard Supported RAM: DDR4 SDRAM
Supported RAM (Registered or Buffered): Unbuffered
Supported RAM Integrity Check: Non-ECC
Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA, SATA-600 / PCIe -connectors: 1 x M.2
Chipset Type: Intel H610
Compatible Processors Comments: Supports 12th/13th and 14th Generation Intel Core / Pentium / Celeron
Audio Codec: Realtek ALC897
Processors Installed: 0
Max Memory Supported: 64 GB
Total Processor Supported: 1
Technical Information
Hardware Features: WatchDog Timer
Form Factor (Motherboard): Micro ATX
Included Items
Included Accessories: 2 x M.2 screws, IO shield
Cables: 1 x Serial ATA cable
Certifications and Listing
Compliant Standards: High Definition Audio
