Product Information

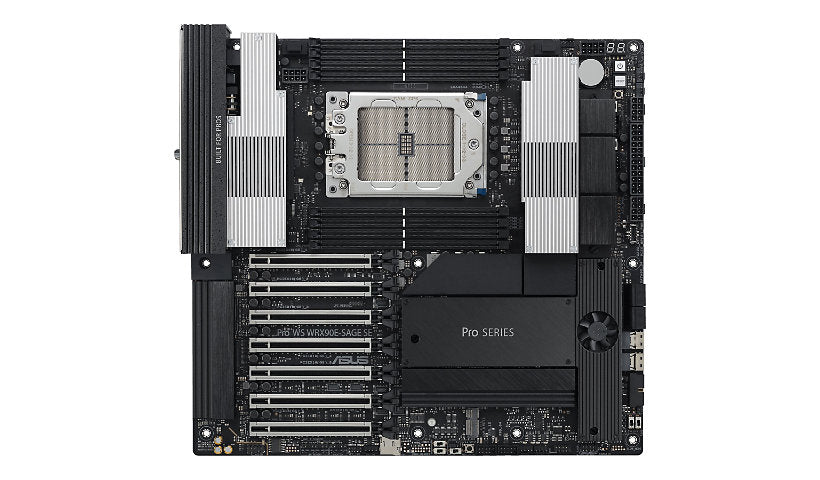

The ASUS PRO WS WRX90E-SAGE SE is an SSI EEB workstation board for AMD Ryzen Threadripper PRO 7000 WX-Series processors on Socket sTR5. It has eight DDR5 ECC slots, seven PCIe 5.0 x16 slots for multi GPU builds, four PCIe 5.0 M.2 slots and dual 10 Gigabit LAN, with a 32+3+3+3 power stage and BMC remote management.
Key Features
- AMD WRX90 chipset, Socket sTR5, SSI EEB
- 8 x DDR5 ECC slots, 8-channel memory
- 7 x PCIe 5.0 x16 slots (one runs at x8)
- 4 x PCIe 5.0 M.2, 2 x SlimSAS, 4 x SATA
- 2 x 10GbE, USB4, BMC and IPMI support
- 32+3+3+3 phase power, BIOS FlashBack
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS
Model: PRO WS WRX90E-SAGE SE
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features: 8-channel memory architecture
Connectivity
Network: 2 x 10 Gigabit Ethernet
Audio Output: High Definition Audio (5.1-channel)
Output Type: Sound card
Expansion Slots: 1 x CPU, 1 x PCIe 5.0 x16 (x8 mode), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 6 x PCIe 5.0 x16, 8 x DIMM 288-pin
Power
Power Connectors: 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector, 24-pin main power connector
Memory and Processor
Compatible Processors: Ryzen ThreadRipper PRO
Processor Socket: Socket sTR5
Memory Slots: 8 DIMM slots
Mainboard Supported RAM: DDR5 SDRAM
Supported RAM Integrity Check: ECC
Storage Interfaces: PCIe 4.0 -connectors: 2 x SlimSAS, PCIe 5.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Chipset Type: AMD WRX90
Compatible Processors Comments: Supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series
Audio Codec: Realtek ALC1220P
Processors Installed: 0
Total Processor Supported: 1
Technical Information
Included Software: Adobe Creative Cloud (free trial), Armoury Crate, ASUS CPU-Z, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial)
BIOS Type: AMI
BIOS Features: BIOS FlashBack, IPMI support, UEFI BIOS
Hardware Features: 32+3+3+3 Phase Power Design, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack button, BIOS FlashBack LED, BMC remote management, Clear CMOS Button, CrashFree BIOS 3, ESD Guards, FlexKey button, Jack retasking, LANGuard, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, Overcurrent protection, Overvoltage protection, PCIe Slot Q-Release, Pre-mounted I/O shield, Preboot eXecution Environment (PXE), Q-Code, Q-DIMM, Q-LED, Q-Slot, Steel backplate, VRM heatsink with fan, Windows 11 compatible
Sleep/Wake Up: Wake on LAN (WOL), Wake on PME
Form Factor (Motherboard): SSI EEB
Included Items
Included Accessories: 2 x PCIe 8-pin to CPU power cables, 24-pin power cable (Y cable), 4 x M.2 rubber package, ACC Express Activation Key Card, AMI license sticker, M.2 Key E screw package, M.2 Q-Latch, Q-Connector, Thermistor cable
Cables: 2 x Mini DisplayPort cable, 4 x Serial ATA cable
Certifications and Listing
Compliant Standards: High Definition Audio
