Product Information

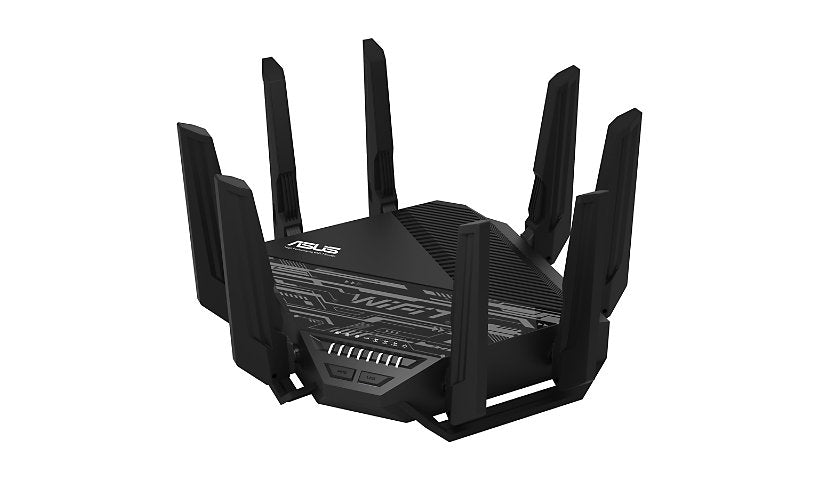

The ASUS RT-BE96U is a BE19000 tri band Wi-Fi 7 router with 320 MHz channels, eight external antennas and two 10GbE ports. It also has a Gigabit WAN/LAN port and three Gigabit LAN ports, USB 3.2 and USB 2.0, a 2.6 GHz processor and 2 GB of RAM, plus AiMesh, AiProtection Pro and Game Boost.
Key Features
- Wi-Fi 7 BE19000, tri band, 320 MHz
- 1 x 10GbE WAN/LAN, 1 x 10GbE LAN
- 1 x GbE WAN/LAN, 3 x GbE LAN
- USB 3.2 Gen 1 and USB 2.0
- AiMesh, AiProtection Pro, Adaptive QoS
- 2.6 GHz CPU, 2 GB RAM, 8 antennas
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS
Model: RT-BE96U
Product Type: Wireless router
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11ax, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, L2TP, PPPoE, PPTP
Encryption: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPS
Line Coding Format: 4096 QAM
Integrated Switch: 5-port switch
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz / 6 GHz
Antennas: 8
Antenna Form Factor: External
Wi-Fi Rating: BE19000
Key Features: Firewall, USB port, VPN support
Features: 160MHz bandwidth support, 320MHz bandwidth support, Adaptive QoS, AiMesh node mode, Airtime Fairness, ASUS AiMesh, ASUS AiProtection, ASUS AiProtection Pro, ASUSWRT, Auto firmware update, Bandwidth Limiter, Bandwidth Monitor, Beamforming technology, Game Boost, Guest Network, IPSec server, IPTV support, IPv4 support, IPv6 support, L2TP client, LED on/off button, Let's Encrypt, MIMO technology, Mobile Game Mode, OpenVPN client, OpenVPN server, Orthogonal Frequency Division Multiple Access (OFDMA), Parental control, PPTP client, PPTP server, Repeating mode, Reset button, Router mode, SSH support, System log, Traffic Analyzer, Traffic monitoring, Wake On LAN (WOL), Wireless Scheduler, WPS button
Connectivity
Interface Provided: LAN: 1 x 10GBase-T - RJ-45, LAN: 3 x 1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, USB 3.2 Gen 1: 1 x 9 pin USB Type A, WAN / LAN: 1 x 1000Base-T - RJ-45, WAN / LAN: 1 x 10GBase-T - RJ-45
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Frequency: 50 - 60 hertz
Memory and Processor
Processors Installed: 1
Clock Speed: 2.6 GHZ
RAM Installed: 2 GB
Flash Memory Installed: 256 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: 2.4 GHz, 5 GHz, 6 GHz, LAN, Power, WAN
Dimensions and Weight
Height: 8.6 inch
Width: 13.8 inch
Depth: 13.8 inch
Weight: 4.12 lbs
Included Items
Cables: 1 x network cable
Warranty
Service Activation: No
