Product Information

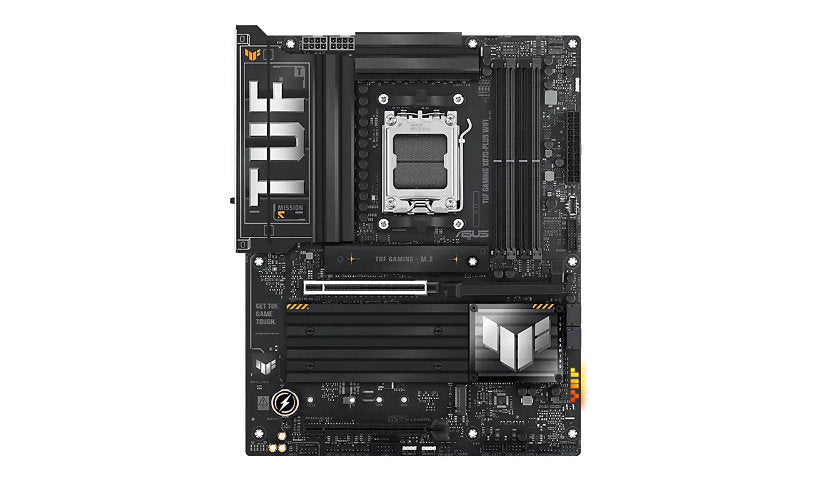

The ASUS TUF GAMING X870-PLUS WIFI is an ATX board for AMD Ryzen 7000, 8000 and 9000 processors on Socket AM5. It supports up to 192 GB of DDR5, has five M.2 slots (two PCIe 5.0), USB4, and networking through Wi-Fi 7 plus a 2.5 Gigabit LAN port, and is built with TUF protection features. The memory speed shown in the source data looks low for DDR5, so please check speeds before ordering.
Key Features
- AMD X870 chipset, Socket AM5, ATX
- 4 x DDR5, up to 192 GB, ECC and non-ECC
- 2 x PCIe 5.0 M.2, 3 x PCIe 4.0 M.2, 2 x SATA
- Wi-Fi 7, Bluetooth 5.4, 2.5GbE, USB4
- PCIe 5.0 x16 slot with Q-Release
- Realtek ALC1220P audio, Q-Design DIY features
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS
Model: TUF GAMING X870-PLUS WIFI
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Features: AMD EXPO technology, Dual channel memory architecture
Connectivity
Network: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Audio Output: High Definition Audio (8-channel)
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x8/x4 mode), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 4 x M.2 socket (2280 M.2 Key M slot)
Power
Power Connectors: 2 x 8-pin ATX12V connectors, 24-pin main power connector
Memory and Processor
Compatible Processors: Ryzen
Processor Socket: Socket AM5
Supported Memory Speed: 4000 MHz (O.C.)
Memory Slots: 4 DIMM slots
Mainboard Supported RAM: DDR5 SDRAM
Supported RAM (Registered or Buffered): Unbuffered
Supported RAM Integrity Check: ECC, Non-ECC
Storage Interfaces: PCIe 4.0 -connectors: 3 x M.2, PCIe 5.0 -connectors: 2 x M.2, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Chipset Type: AMD X870
Compatible Processors Comments: Supports Ryzen 7000/8000/9000 Series
Audio Codec: Realtek ALC1220P
Processors Installed: 0
Max Memory Supported: 192 GB
Total Processor Supported: 1
Technical Information
Included Software: Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
BIOS Type: AMI
BIOS Features: ASUS EZ Flash 3, UEFI BIOS
Hardware Features: ASUS DIGI+ VRM, ASUS Enhanced Memory Profile (AEMP), ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, ASUS TUF Protection, CrashFree BIOS 3, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, Pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, Steel backplate, TUF LANGuard, VRM heatsink design
Sleep/Wake Up: Wake on LAN (WOL), Wake on PME
Form Factor (Motherboard): ATX
Certifications and Listing
Compliant Standards: High Definition Audio
