Product Information

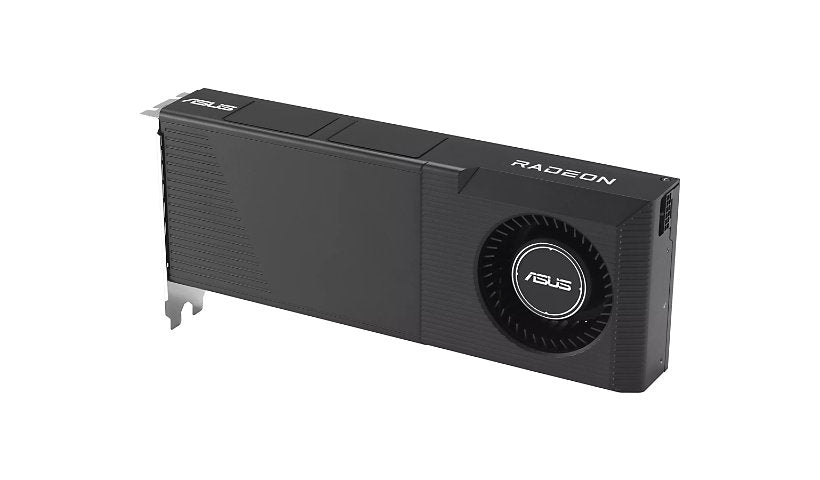

The ASUS Turbo Radeon AI PRO R9700 is a dual-slot graphics card with 32 GB of GDDR6 memory on a 256-bit bus, built on AMD RDNA 4 with 64 compute units and 128 AI accelerators. It boosts up to 2920 MHz, uses PCI Express 5.0 and drives up to four monitors. This is a graphics card listed in the CPU category.
Key Features
- AMD Radeon AI PRO R9700, 64 RDNA 4 compute units
- 32 GB GDDR6, 256-bit bus
- Up to 2920 MHz boost clock
- 3 x DisplayPort and HDMI, up to 4 monitors at 7680 x 4320
- PCIe 5.0, 16-pin PCIe Gen 5 power connector
- Dual ball bearing fan, GPU Guard, GPU Tweak III
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS Turbo
Product Type: Graphics card
Packaged Quantity: 1
Color Category: Black
Network and Communication
Software Type: ASUS GPU Tweak III
Connectivity
Output Ports (compact list): 3 x DisplayPort, HDMI
Interface Type: PCI Express 5.0
Interfaces: 3 x DisplayPort, HDMI
Memory and Processor
Installed Size: 32 GB
Graphics Controller Model: AMD Radeon AI PRO R9700
Graphics Processor Manufacturer: AMD
Boost Clock Speed: 2920 megahertz
Bus Width: 256-bit
API Supported: OpenGL 4.6
Video Adapter Features: 128 AI Accelerators, 128 ROPs, 1531 Tflops peak INT4 performance, 47.8 Tflops peak single precision matrix (FP32) performance, 64 AMD RDNA 4 compute units, 766 Tflops peak INT8 performance, 95.7 Tflops peak half precision matrix (FP16) performance, ASUS GPU Guard, Dual ball Bearing Fan, Dual slot width, Phase-change thermal pad, Stainless steel mounting bracket
HDCP Supported: Yes
Memory Technology: GDDR6 SDRAM
Technical Information
Maximum Monitors Supported: 4
Maximum External Resolution: 7680 x 4320
Supported Video Signal: DisplayPort, HDMI
Additional Requirements: 16-pin PCI Express Gen 5 power connector
Dimensions and Weight
Height: 4.4 inch
Width: 1.6 inch
Depth: 10.5 inch
Certifications and Listing
Compliant Standards: DisplayPort 2.1a, HDCP 2.3
ENERGY STAR Certified: No
