Product Information

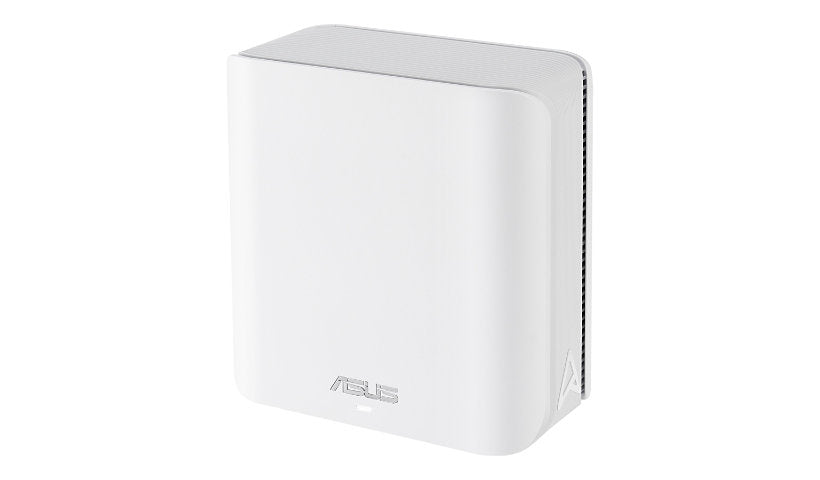

This is a single ASUS ZenWiFi BD4 router, a dual band Wi-Fi 7 mesh unit with two 2.5G WAN/LAN ports, four antennas and 512 MB RAM. It supports AiMesh and AiProtection Pro and can be added to an existing ASUS mesh. This is a home and small office router, not a business access point.
Key Features
- Dual band Wi-Fi 7
- 1 unit
- 2 x 2.5G WAN/LAN
- 4 antennas
- AiMesh, AiProtection Pro
- Desktop
Product Information
Brand: ASUS
Manufacturer: Asus
Product Line: ASUS
Model: ZenWiFi BD4
Product Type: Wi-Fi system
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, IPv4, IPv6, L2TP, PPTP
Bridge & Router: 2.4 GHz transfer rate (2x2): 688 Mbps, 5 GHz transfer rate (2x2): 2882 Mbps
Encryption: TLS, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPS
Line Coding Format: 4096 QAM, OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: Internal
Mesh Networking: Yes
Wi-Fi System Components: Router
Virtual Assistant Supported: Google Assistant
Key Features: Firewall, VPN support
Features: 160MHz bandwidth support, Access Point operational mode, Adaptive QoS, AiMesh node mode, Airtime Fairness, ASUS AiMesh, ASUS AiProtection Pro, ASUS Router App, Auto firmware update, Bandwidth Limiter, Bandwidth Monitor, Beamforming technology, Built-in heatsink, DDNS (Dynamic Domain Name Service), DHCP server, DMZ support, Dual WAN connection, Explicit Beamforming, Guest Network, IGMP snooping, Intrusion Prevention System (IPS), IPSec server, IPSec VPN server, IPTV support, IPv4 support, IPv6 support, L2TP VPN client, Let's Encrypt, Login captcha, MAC address filtering, MU-MIMO technology, OpenVPN client, OpenVPN server, Orthogonal Frequency Division Multiple Access (OFDMA), Parental control, Port forwarding, Port triggering, PPTP client, PPTP server, PPTP VPN client, PPTP VPN server, QoS, RADIUS support, Reset button, Router mode, System log, Traffic Analyzer, Traffic Control, Traffic monitoring, VPN Fusion, Wake On LAN (WOL), WireGuard, Wireless Scheduler, WPS button
Connectivity
Interface Provided: WAN / LAN: 2 x 2.5GBase-T - RJ-45
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Power
Dimensions and Weight
Height: 5.5 inch
Width: 5.5 inch
Depth: 2.8 inch
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
