Product Information

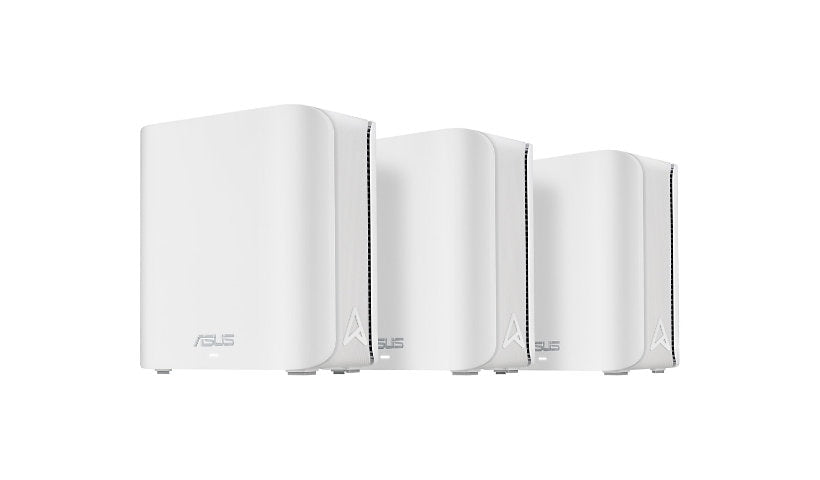

This three pack of ASUS ZenWiFi BD4 units forms a dual band Wi-Fi 7 mesh system covering up to 6,500 sq ft. Each unit has two 2.5G WAN/LAN ports, four antennas and 512 MB RAM, with AiMesh and AiProtection. This is a home and small office mesh system, not a business access point.
Key Features
- Dual band Wi-Fi 7 mesh
- 3 units, up to 6,500 sq ft
- 2 x 2.5G per unit
- 4 antennas
- AiMesh, AiProtection
- Desktop
Product Information
Brand: ASUS
Manufacturer: Asus
Product Line: ASUS
Model: ZenWiFi BD4
Product Type: Wi-Fi system
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, L2TP, PPTP
Encryption: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3-Personal
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Antennas: 4
Antenna Form Factor: Internal
Mesh Networking: Yes
Wi-Fi System Components: 3 routers
Wi-Fi System Coverage: Up to 6,500 sq.ft
Key Features: Firewall, VPN support
Features: 160MHz bandwidth support, Access Point operational mode, Adaptive QoS, AiMesh node mode, Airtime Fairness, ASUS AiMesh, ASUS AiProtection, ASUS Router App, Auto firmware update, Bandwidth Limiter, Bandwidth Monitor, Beamforming technology, DMZ support, Explicit Beamforming, Guest Network, IGMP snooping, IPSec server, IPTV support, L2TP VPN client, Let's Encrypt, Link Aggregation, Login captcha, MU-MIMO technology, OpenVPN client, OpenVPN server, Orthogonal Frequency Division Multiple Access (OFDMA), Parental control, Port forwarding, Port triggering, PPTP client, PPTP server, RADIUS support, Reset button, System log, Traffic monitoring, VLAN support, VPN Fusion, Wake On LAN (WOL), Wireless Scheduler, WPS button
Connectivity
Interface Provided: WAN / LAN: 2 x 2.5GBase-T - RJ-45
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Frequency: 50 - 60 hertz
Memory and Processor
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Power
Dimensions and Weight
Height: 5.5 inch
Width: 5.5 inch
Depth: 2.8 inch
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
