Product Information

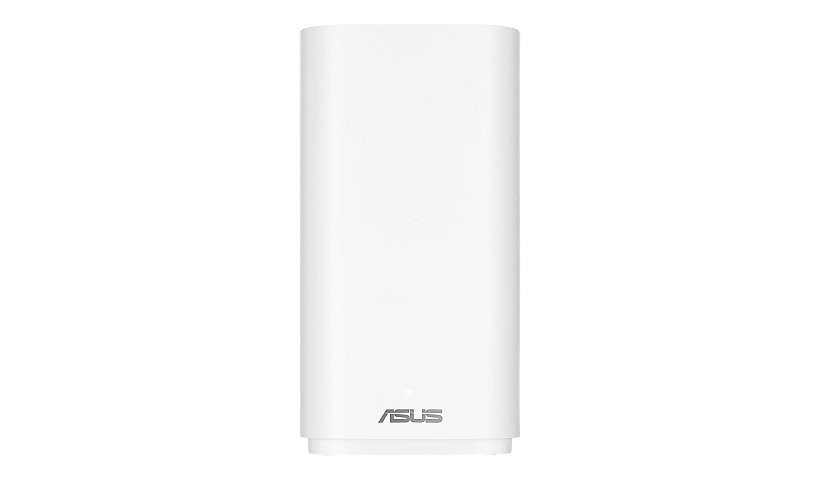

The ASUS ZenWiFi BD5 is a BE5000 dual band Wi-Fi 7 mesh router covering up to 2,500 sq ft, supplied as a single unit. It has two 2.5GbE WAN/LAN ports, AiMesh, AiProtection Pro and Instant Guard VPN. The title lists it as TAA compliant. The part number mentions outdoor, while the specs list a desktop unit, so please confirm.
Key Features
- Wi-Fi 7 BE5000 dual band, 4096 QAM
- Up to 2,500 sq ft, 1 router
- 2 x 2.5GbE WAN/LAN
- AiMesh, AiProtection Pro, Instant Guard
- 1.5 GHz CPU, 512 MB RAM
- TAA compliant per title
Product Information
Brand: ASUS
Manufacturer: Asus Components
Product Line: ASUS
Model: ZenWiFi BD5
Product Type: Wi-Fi system
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, L2TP, PPTP
Bridge & Router: 4096
Encryption: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3-Personal
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Wi-Fi Rating: BE5000
Mesh Networking: Yes
Wi-Fi System Components: Router
Wi-Fi System Coverage: Up to 2,500 sq.ft
Virtual Assistant Supported: Google Assistant
Key Features: Firewall, VPN support
Features: Adaptive QoS, Airtime Fairness, ASUS AiMesh, ASUS AiProtection, ASUS AiProtection Pro, ASUS Instant Guard, ASUS Router App, Auto detecting, Auto firmware update, Bandwidth Limiter, Bandwidth Monitor, Beamforming technology, DHCP server, Explicit Beamforming, IGMP snooping, IPSec VPN server, IPTV support, L2TP VPN client, Let's Encrypt, Login captcha, Malicious site blocking, MU-MIMO technology, OpenVPN client, OpenVPN server, Orthogonal Frequency Division Multiple Access (OFDMA), Outdoor, Parental control, Port forwarding, Port triggering, PPTP VPN client, PPTP VPN server, QoS, Reset button, System log, Traffic Analyzer, Traffic monitoring, VPN Fusion, Wake On LAN (WOL), WireGuard, Wireless Scheduler
Connectivity
Interface Provided: WAN / LAN: 2 x 2.5GBase-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Frequency: 50 - 60 hertz
Memory and Processor
Clock Speed: 1.5 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Power
Dimensions and Weight
Height: 7.9 inch
Width: 4.2 inch
Depth: 4.2 inch
Weight: 2.29 lbs
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
