Product Information

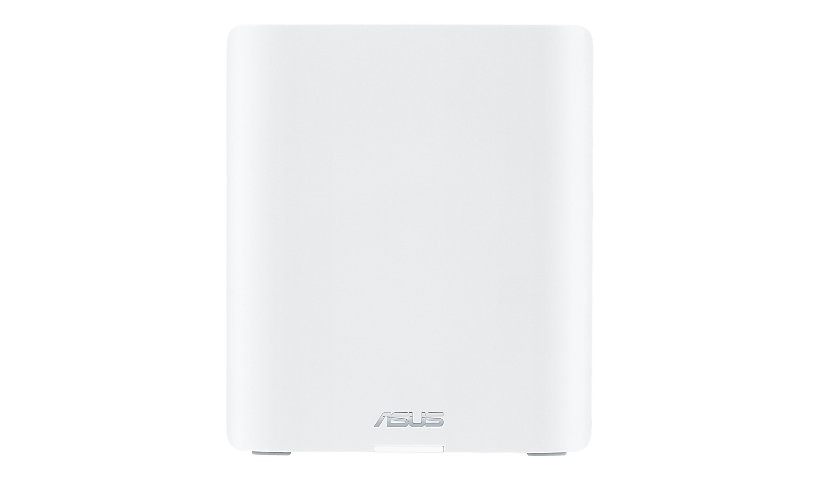

This is a single ASUS ZenWiFi BT6 router, a Wi-Fi 7 mesh unit covering up to 3,000 sq ft with 320 MHz channel support. It has a 2.5G WAN/LAN port, three Gigabit LAN ports, USB 3.0, seven internal antennas and 1 GB RAM, with AiMesh support. This is a home and small office mesh router, not a business access point.
Key Features
- Wi-Fi 7 mesh router, 1 unit
- Up to 3,000 sq ft
- 2.5G WAN/LAN + 3 x Gigabit LAN
- USB 3.0
- 7 internal antennas
- AiMesh support
Product Information
Brand: ASUS
Manufacturer: Asus
Product Line: ASUS
Model: ZenWiFi BT6
Product Type: Wi-Fi system
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, IPv4, IPv6, L2TP, PPTP
Bridge & Router: 2.4 GHz transfer rate (2x2): 688 Mbps, 5 GHz transfer rate (2x2): 2882 Mbps, 6 GHz transfer rate (2x2): 5762 Mbps
Encryption: TLS, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPS
Line Coding Format: 4096 QAM, OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz / 6 GHz
Internet of Things (IoT) Compatible: Yes
Antennas: 7
Antenna Form Factor: Internal
Wi-Fi Rating: BE9400
Mesh Networking: Yes
Wi-Fi System Components: Router
Wi-Fi System Coverage: Up to 3,000 sq.ft
Virtual Assistant Supported: Google Assistant
Key Features: Firewall, USB port, VPN support
Features: 320MHz bandwidth support, 3G/4G USB Dongle Support, 4G/5G Auto Mobile Tethering, Access Point operational mode, Adaptive QoS, AiMesh node mode, Airtime Fairness, Apple Time Machine compatible, ASUS AiCloud, ASUS AiDisk, ASUS AiMesh, ASUS AiProtection, ASUS Instant Guard, ASUS Router App, Auto firmware update, Bandwidth Limiter, Bandwidth Monitor, Beamforming technology, DDNS (Dynamic Domain Name Service), DHCP server, DMZ support, Explicit Beamforming, External HDD hibernation, FTP server, Guest Network, IGMP snooping, IPSec VPN server, IPTV support, L2TP VPN client, Let's Encrypt, Link Aggregation, Login captcha, MAC address filtering, Malicious site blocking, MU-MIMO technology, Multi-Link Operation (MLO), OpenVPN client, OpenVPN server, Parental control, Port forwarding, Port triggering, PPTP VPN client, PPTP VPN server, RADIUS support, Reset button, Samba support, System log, Traffic Analyzer, Traffic monitoring, VPN Fusion, VPN support, Wake On LAN (WOL), WireGuard, Wireless Scheduler, WPS button
Connectivity
Interface Provided: LAN: 3 x 1000Base-T - RJ-45, USB 3.0: 1 x 9 pin USB Type A, WAN / LAN: 1 x 2.5GBase-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processors Installed: 1
RAM Installed: 1 GB
Flash Memory Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Power
Dimensions and Weight
Height: 7.3 inch
Width: 6.3 inch
Depth: 2.8 inch
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
