Product Information

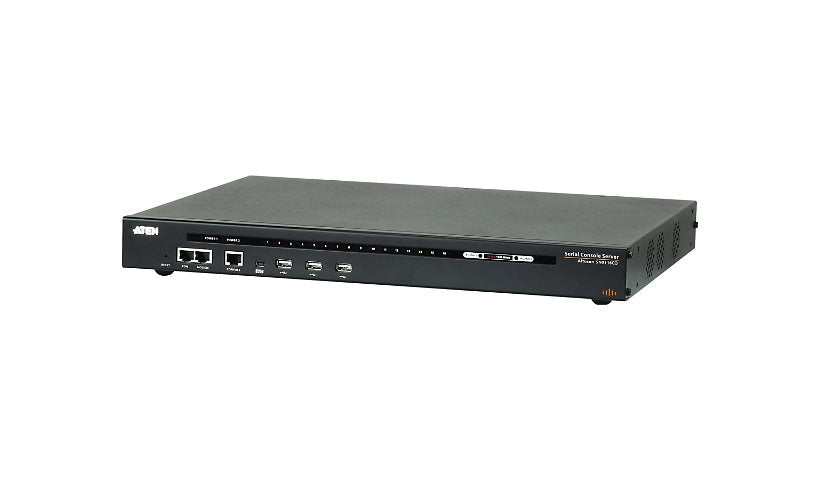

The ATEN ALTUSEN SN0116CO is a 16 port console server for secure serial access in data centers over the main network or a separate out-of-band path. Its sixteen RS-232 RJ-45 ports auto sense DTE/DCE for direct connection to Cisco switches without rollover cables. It has two gigabit RJ-45, a modem port, a management port, a laptop USB console port and three USB-A, with dual power supplies drawing about 14 W in a metal case. It supports FIPS 140-2, TLS 1.2, 2048-bit RSA, Kerberos, LDAP, RADIUS and TACACS+, with SNMP traps, e-mail and SMS alerts. A mounting kit, foot pads, cable straps and a USB cable are included.
Key Features
- 16 RS-232 RJ-45 ports
- Auto sensing DTE/DCE
- Dual GbE, dual PSU
- Modem and laptop USB port
- FIPS 140-2, TLS 1.2
- Mounting kit included
Product Information
Brand: ALTUSEN
Manufacturer: Aten Technologies
Product Line: ALTUSEN
Model: SN0116CO
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: NTP, SMTP, TCP/IP, UDP/IP
Remote Management: HTTP, SSH, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+
Encryption: 2048-bit RSA, FIPS 140-2, TLS 1.2
Operating System Required: Linux, Microsoft Windows 2000 or later, Microsoft Windows Server 2003, Microsoft Windows Server 2008, SunSoft Solaris, UNIX
Features: Auto-sensing per device, E-mail notification, Event notification, IP address filtering, IPv4 support, IPv6 support, Laptop USB Console (LUC) port, MAC address filtering, Metal housing, Modem emulation, Network Timing Protocol (NTP), SMS alert, SMTP e-mail client, SNMP support, SNMP trap, Syslog support
Connectivity
Ports: 16
Interface Provided: 1 x management - RJ-45, 1 x mini-USB - Type B, 1 x modem - RJ-45, 1 x PON - RJ-45, 16 x RS-232 - RJ-45, 2 x 1000Base-T - RJ-45, 3 x USB - Type A
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 14 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 80% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, Serial
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 13 inch
Weight: 9.88 lbs
Included Items
Included Accessories: 4 foot pads, Cable retaining straps, Mounting kit
Cables: 1 x USB cable
Certifications and Listing
Compliant Standards #2: TLS 1.2
Compliant Standards: FCC Part 15, FIPS 140-2, RoHS
Compliant Standards: TLS 1.2
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
