Product Information

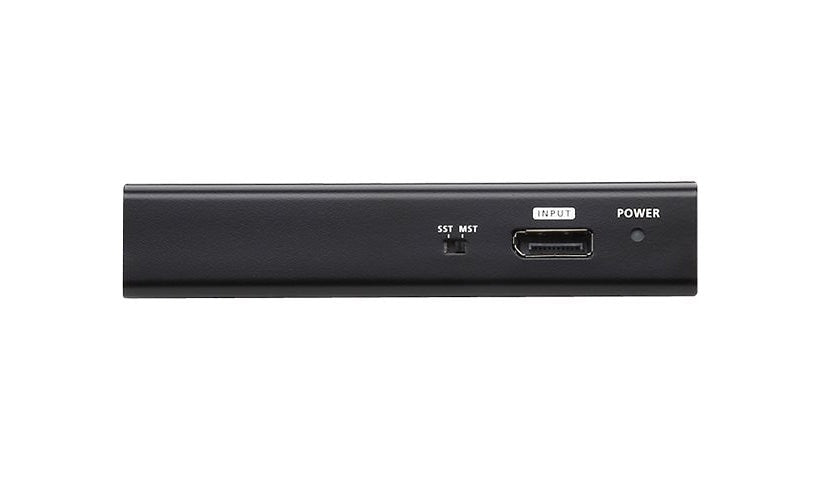

The ATEN VS192 sends one DisplayPort source to two DisplayPort displays, splitting or expanding audio and video across both screens for multi-display setups. It is compatible with DisplayPort 1.2a and supports up to 4K (4096 x 2160) at 60Hz, making it a good fit for home theater, corporate, education and commercial installations. The unit has a metal housing.
Key Features
- 1 input, 2 output DisplayPort splitter
- Up to 4K (4096 x 2160) at 60Hz
- DisplayPort 1.2a
- Metal housing
Product Information
Brand: ATEN
Manufacturer: Aten Technologies
Product Line: ATEN
Model: VS192
Product Type: Video splitter
Compatible With: ATEN VP2730 ¦ ATEN VanCryst VB905
Technical Information
Features: 4K resolution support, Metal housing
Dimensions and Weight
Width: 4.9 inch
Height: 1 inch
Depth: 3.2 inch
Weight: 10.58 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop
Ports: 2
Subcategory: Peripheral sharing and hubs
Switching Type: DisplayPort
Interface Provided: 1 x DisplayPort input, 2 x DisplayPort output
Port Quantity: 2
Port Type: DisplayPort
KVP Max Resolution: 4096 x 2160
Power Consumption Operational: 1.185 watt
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
Operating Humidity: 0 - 80% (non-condensing)
Device Type: External power adapter
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.3
