Product Information

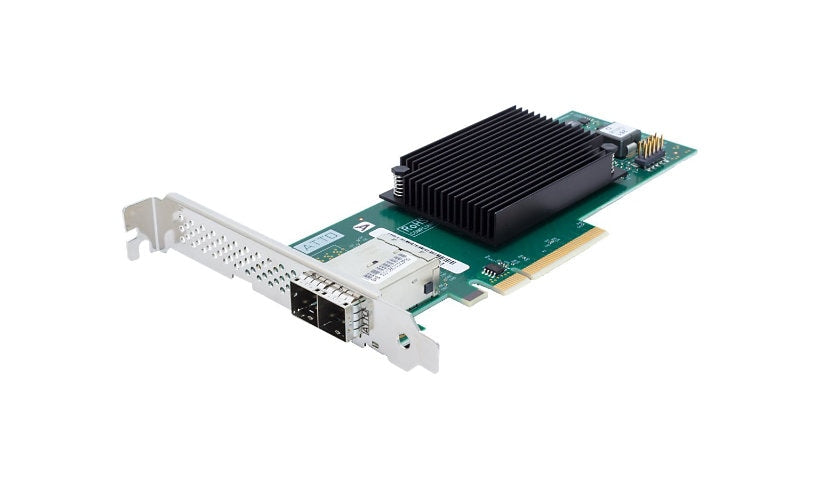

The ATTO ExpressSAS H1280GT (ESAH-1280-GT0) is a low profile 8 channel SAS/SATA 12Gb/s adapter on a PCIe 4.0 x8 interface, with two external Mini SAS HD connectors and RAID 0, 1, 1E and 10 support. It is built for data center, analytics, cloud, forensics, video on demand, broadcast and trading systems, with Advanced Data Streaming, temperature monitoring, LEDs and UEFI support, drawing about 6.3 W with a rated MTBF of 4.5 million hours. It works with macOS, Windows, Linux, FreeBSD, Illumos and VMware ESXi.
Key Features
- 8 channel SAS/SATA 12Gb/s
- 2 x external Mini SAS HD
- RAID 0, 1, 1E, 10
- PCIe 4.0 x8
- macOS, Windows, Linux
- Low profile card
Product Information
Brand: ATTO
Manufacturer: Atto Technology
Product Line: ATTO ExpressSAS
Model: H1280GT
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Data Transfer Rate: 12 Gbit/s
Operating System Required: Apple MacOS, CentOS, FreeBSD, Illumos, Linux, Linux Fedora, Microsoft Windows, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Features: Advanced Data Streaming (ADS), LED Indicator, Temperature monitoring, UEFI support
Software Type: ATTO ConfigTool, ATTO Power Center Pro
Connectivity
Channel Quantity: 8
Controller Interface: SATA / SAS 12Gb/s
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Shielded Mini MultiLane (external)
Power
Power Device Type: None
Power Consumption Operational: 6.3 watt
Memory and Processor
Form Factor (Storage Controller): Plug-in card
RAID Levels: RAID 0, RAID 1, RAID 10, RAID 1E
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
MTBF: 4,500,000 Hours
Physical Characteristics
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32:2015, CISPR 32:2015 Class A, EMC, EN 55032:2015, EN 55035:2017, FCC Part 15 Subpart B:2020 Class A, ICES-003, IEC 62368-1, RoHS, RoHS 2011/65/EU, RoHS 2015/863/EU, VCCI 32-1
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
