Product Information

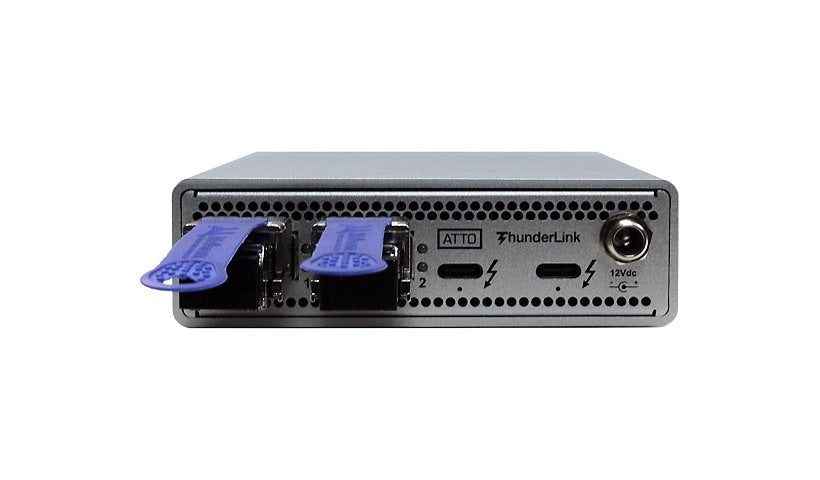

The ATTO ThunderLink N3 3102 is an external adapter that connects Thunderbolt 3 computers such as all in ones and mobile workstations to 10 Gigabit Ethernet networks and storage. It has two Thunderbolt 3 ports for daisy chaining and ships with two SFP+ LC transceivers and a power adapter. It supports link aggregation, teaming, load balancing, ATTO Advanced Data Streaming and TSO and LSO offloads, with SNMP and RMON management. It works with macOS, Windows, Linux and VMware ESXi and is TAA compliant. The title gives two SFP+ ports while the interface spec lists one, so please confirm.
Key Features
- 10GbE SFP+ ports
- Thunderbolt 3 connection
- 2 SFP+ LC optics included
- Link aggregation, teaming
- macOS, Windows, Linux
- TAA compliant
Product Information
Brand: ATTO
Manufacturer: Atto Technology
Product Line: ATTO ThunderLink
Model: N3 3102
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: IPSec, IPv4, TCP/IP, UDP/IP
Remote Management: RMON, SNMP
Data Transfer Rate: 10 GBps
Operating System Required: Apple MacOS, Linux, VMware ESXi, Windows
Features: 4K resolution support, Adaptive load balancing (ALB), Advanced Data Streaming (ADS), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), Flow control, Large Send Offload (LSO), Link Aggregation, Message Signaled Interrupts (MSI), Packet filtering, Security lock slot (cable lock sold separately), TCP Segmentation Offload (TSO), TCP/IP checksum offload, Teaming support, UDP/IP checksum offload, VLAN support, VLAN Tagging, Watch Dog Timer (WDT)
Connectivity
Port Quantity: 2
Interface Provided: 1 x 10Gb Ethernet - SFP+, 2 x Thunderbolt 3 - 24 pin USB-C
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: Thunderbolt 3
Power
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity
Dimensions and Weight
Height: 1.2 inch
Width: 8.7 inch
Depth: 4.1 inch
Included Items
Included Accessories: 2 x SFP+ LC transceivers, Power adapter
Certifications and Listing
Compliant Standards #2: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az
Compliant Standards: cTUVus, EN 55032 Class B, EN 60825-1, EN 60825-2, EN 60950-1, EN55024, FCC Part 15 B, Plug and Play, RoHS, RoHS 2011/65/EU
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
