Product Information

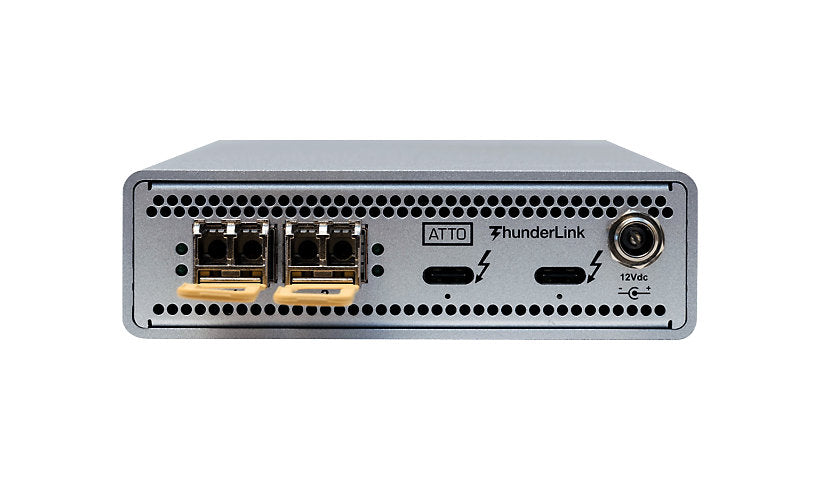

The ATTO ThunderLink NS 3252 is an external adapter that connects a Thunderbolt 3 computer to 25 Gigabit Ethernet networks and storage through two SFP28 ports. It has two Thunderbolt 3 ports for daisy chaining and suits backup and restore, compute clusters, streaming content, imaging in healthcare and video renders. Features include adaptive load balancing, ATTO Advanced Data Streaming, packet filtering, VLAN support and SR-IOV, with SNMP and RMON management. It supports macOS, Windows and Linux and is TAA compliant.
Key Features
- 2 x 25GbE SFP28 ports
- Thunderbolt 3 host connection
- 2 x Thunderbolt 3 ports
- macOS, Windows, Linux
- Load balancing and VLANs
- TAA compliant
Product Information
Brand: ATTO
Manufacturer: Atto Technology
Product Line: ATTO ThunderLink
Model: NS 3252
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 25 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Remote Management: RMON, SNMP
Data Transfer Rate: 25 GBps
Operating System Required: Apple MacOS, Linux, Windows
Features: Adaptive load balancing (ALB), Advanced Data Streaming (ADS), Advanced Packet Filtering, Extended Message-Signaled Interrupts (MSI-X), Large Send Offload (LSO), Message Signaled Interrupts (MSI), Single Root I/O Virtualization (SR-IOV), VLAN support
Connectivity
Port Quantity: 2
Interface Provided: 2 x 25Gb Ethernet - SFP28, 2 x Thunderbolt 3
Network & Adapter Ports: 25 Gigabit SFP28
Host Interface: Thunderbolt 3
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.2 inch
Width: 4.1 inch
Depth: 8.7 inch
Certifications and Listing
Compliant Standards #2: cTUVus, EN 55032 Class B, EN 60825-1, EN 60825-2, EN 60950-1, EN55024, FCC Class B certified, FCC Part 15 B, RoHS 2011/65/EU
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, USB 2.0, USB 3.1
Compliant Standards: cTUVus, EN 55032 Class B, EN 60825-1, EN 60825-2, EN 60950-1, EN55024, FCC Class B certified, FCC Part 15 B, RoHS 2011/65/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
