Product Information

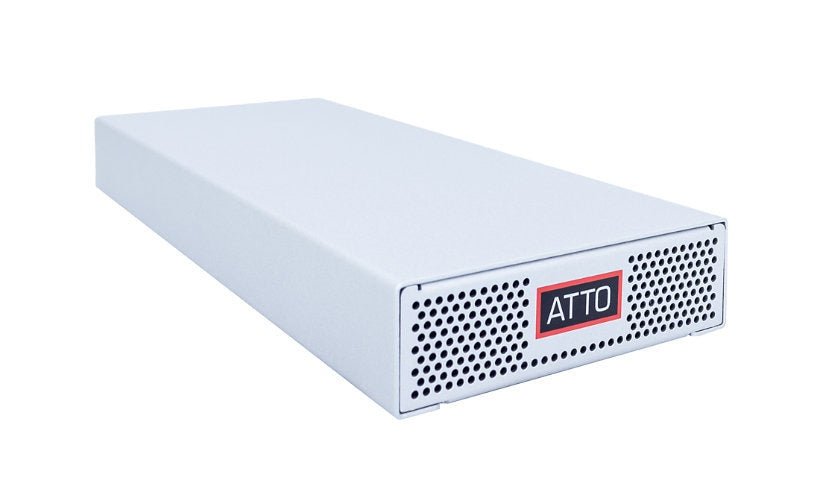

The ATTO XstreamCORE ET 8100T (XCET-8100-TN0) is a rack mount storage bridge, not a network card, that connects iSCSI hosts over two 10 Gigabit Ethernet ports to SAS tape drives. It supports up to four 12Gb SAS tape drives through Mini SAS HD (SFF-8644) connectors, has a battery free design, status LEDs and temperature monitoring, and draws about 29 W. An RJ-45 copper SFP module is included, and it is TAA compliant. The title mentions a single SAS port while the spec lists four.
Key Features
- Storage bridge, not a NIC
- 2 x 10GbE iSCSI host ports
- Up to 4 SAS tape drives
- 12Gb SAS, SFF-8644
- Battery free design
- TAA compliant
Product Information
Brand: ATTO
Manufacturer: Atto Technology
Product Line: ATTO XstreamCORE
Model: ET 8100T
Product Type: Storage protocol bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Data Transfer Rate: 12 Gbit/s
Features: Battery-free, ISV-certified, LED Indicator, Temperature monitoring
Connectivity
Channel Quantity: 4
Controller Interface: SAS 12Gb/s
Interface Required Connections: 2 x 10Gb Ethernet
Host Bus Interface: 10 Gigabit Ethernet, iSCSI
Interface Provided: 1 x management (Ethernet) - RJ-45, 4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
Power
Power Consumption Operational: 29 watt
Memory and Processor
Form Factor (Storage Controller): Rack-mountable
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Supported Devices: Tape drive
Dimensions and Weight
Height: 9.4 inch
Width: 1.2 inch
Depth: 4.1 inch
Weight: 32.8 ounce
Certifications and Listing
Compliant Standards: AS/NZS, EMC, EMI, EN 55024 Class A, EN 55032, EN 62368, FCC Part 15 A, ICES-003 Class A, IPv4, IPv6, RoHS 3, UL 62368, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
