Product Information
Axiom MPO trunk cables are made for high-density fiber environments such as digital cross-connects, optical backplanes, parallel processing setups and Fibre Channel storage facilities.

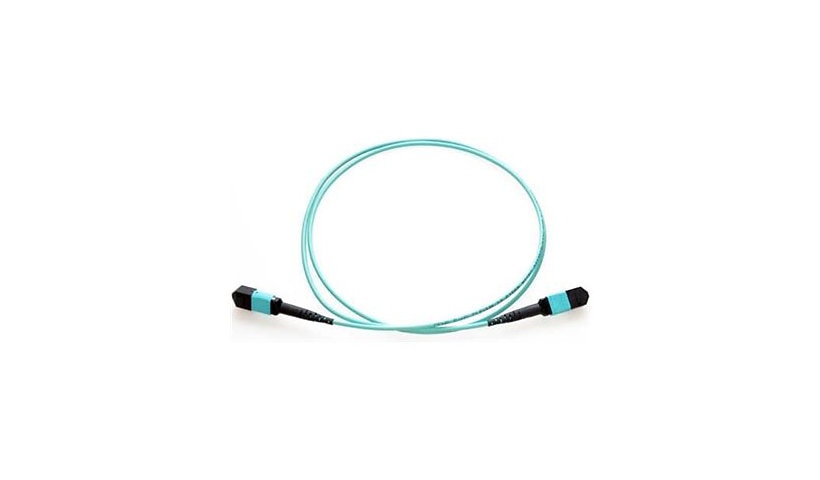

This 10 meter (33ft) aqua trunk has a female MTP/MPO Type-B multimode connector on each end and 12 strands of OM4 50/125 micron fiber. It uses polarity method B, push-pull connectors and an OFNP plenum-rated, flame-retardant jacket.
Specifications:
Brand: Axiom
Manufacturer part number: AXG95090
Cable type: Trunk cable
Fiber mode: Multimode
Core/cladding: 50/125 µm
Fiber count: 12
Connector, end A: 1 x MTP/MPO type B multimode (female)
Connector, end B: 1 x MTP/MPO type B multimode (female)
NEC marking: OFNP
Features: Crossover, Plenum, 0.35 dB insertion loss, Flame retardant, High density (HD), Polarity Method B, Push-pull connector, Rolled
Length: 10 m (33 ft)
Color: Aqua
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: OM4, EN 50173-5, IEC 61300-3-35, ISO/IEC 24764, RoHS, TIA/EIA-942
Warranty: Limited Lifetime
