Product Information

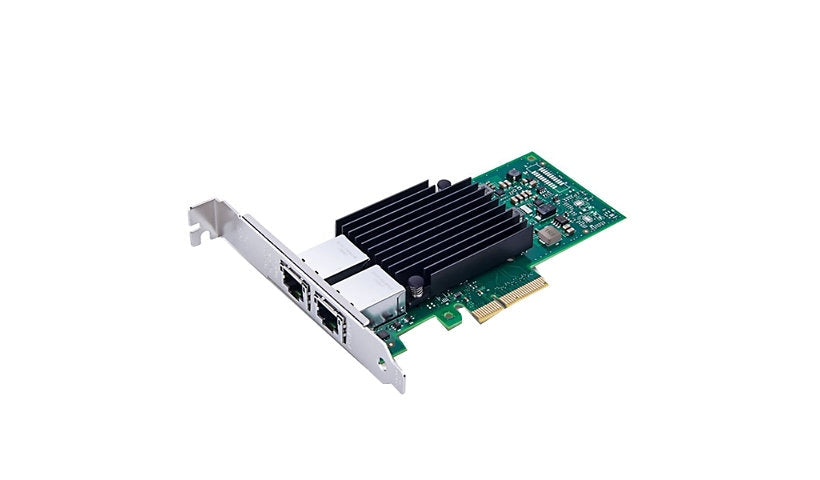

The Axiom 1QL46AA-AX is a dual port 10 Gigabit RJ-45 network card built on the Intel X550-AT2 controller, made as an equivalent to the HP 1QL46AA. It supports NBase-T speeds over standard Cat 6a cabling, with iSCSI, FCoE and Flexible Port Partitioning. Listed systems include HP Z2 G4, G5, G8 and G9, Z4 G4, Z6 G4 and Z8 G4 workstations and the ZCentral 4R. The title gives PCIe 3.0 x4 while the spec lists PCIe 3.0 x8, so please confirm your slot.
Key Features
- 2 x 10GbE RJ-45 ports
- Intel X550-AT2 controller
- HP 1QL46AA equivalent
- NBase-T support
- For HP Z workstations
- iSCSI and FCoE
Product Information
Compatible to OEM Part Numbers: HP 1QL46AA
Brand: Axiom
Manufacturer: Axiom
Product Line: Axiom
Product Type: Network adapter
Compatibility Specs: HP Workstation Z2 G4, Z2 G5, Z2 G8, Z2 G9, Z4 G4, Z6 G4, Z8 G4 ¦ HP ZCentral 4R
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Data Transfer Rate: 10 GBps
Operating System Required: Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Oracle Solaris 10, Red Hat Enterprise Linux 5.x, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 10, SuSE Linux Enterprise Server 11, VMware ESX 4.1, VMware ESXi 4.1
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: PCI Express 3.0 x8
Memory and Processor
Processor Brand: Intel
Processor Number: X550-AT2
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 6.6 inch
Width: 0.7 inch
Depth: 2.8 inch
Weight: 6.56 ounce
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
