Product Information

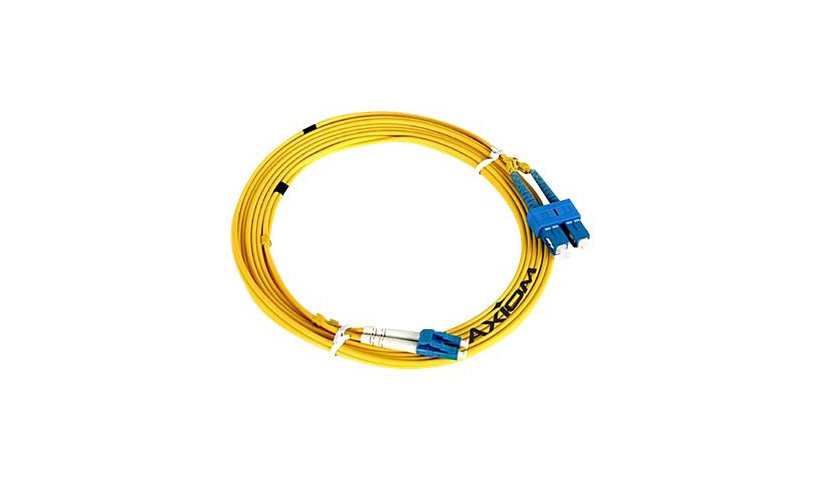

This 5 meter (16.4 ft) Axiom duplex fiber cable connects LC to SC over OS2 9/125 single mode fiber, made for long distance, low loss single mode links in network upgrades or new builds. Axiom builds its cabling with quality components and current construction methods so each cable meets the industry specifications for its intended use.
It is built to last, with a long term tensile strength of 150 N and crush resistance of 200 N/100 mm. It uses bend insensitive Corning glass fiber with a 10 mm bend radius, duplex clips on both ends and an OFNR rated PVC jacket.
General
Brand: Axiom
Product line: Axiom
Part number: LCSCSD9Y-5M-AX
Cable type: Network cable
Package quantity: 1
Cable and Fiber
Length: 5 m (16.4 ft)
Fiber: OS2 single mode, 9/125 µm
Fiber count: 2
Cable mode: Duplex
Jacket: PVC, OFNR rated
Color: Yellow
Connectors
Connectors: LC (male) to SC (male)
Duplex clips: Both ends
Physical and Environmental
Glass: Corning
Bend radius: 10 mm
Long term tensile strength: 150 N
Crush resistance: 200 N/100 mm
Operating temperature: -40°C to 70°C (-40°F to 158°F)
Compliance and Warranty
Manufacturer warranty: Limited Lifetime
