Product Information

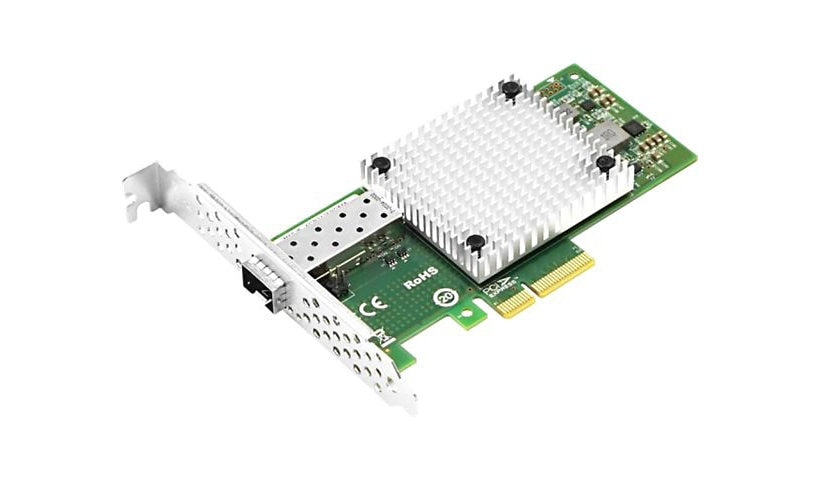

This Axiom card (PCIE24-1SFPP-AX) is a single port 10 Gigabit SFP+ network card on a PCIe 2.0 x4 interface, built on the Intel 82599 controller. It handles both data and storage traffic with SR-IOV, FCoE, PXE boot and UEFI 2.1 support, and tracks statistics through SNMP and RMON counters. Full height and half height brackets are included. Listed operating systems include Windows, Windows Server, Red Hat, SUSE, FreeBSD and Linux.
Key Features
- 1 x 10GbE SFP+ port
- Intel 82599 controller
- PCIe 2.0 x4
- SR-IOV and FCoE
- PXE boot support
- Both brackets included
Product Information
Brand: Axiom
Manufacturer: Axiom
Product Line: Axiom
Model: PCIE24-1SFPP-AX
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Data Transfer Rate: 10 GBps
Operating System Required: FreeBSD 7.2 or later, Linux 2.6.30 or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Vista (32/64 bits), Red Hat Enterprise Linux 6.x, SuSE Linux Enterprise Server 10 SP4, SuSE Linux Enterprise Server 11 SP1, Vmware ESX 4.02, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Features: FCoE support, PXE boot, RMON statistic counter, Single Root I/O Virtualization (SR-IOV), SNMP statistic counter, Watch Dog Timer (WDT)
Connectivity
PCI Specification Revision: PCIe 2.0
Port Quantity: 1
Interface Provided: 1 x 10 Gigabit Ethernet - SFP+
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: PCI Express 2.0 x4
Memory and Processor
Processor Brand: Intel
Processor Number: 82599
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Width: 0.6 inch
Depth: 6.5 inch
Included Items
Included Accessories: Full-height mounting bracket, Half-height mounting bracket
Certifications and Listing
Compliant Standards: UEFI 2.1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
