Product Information

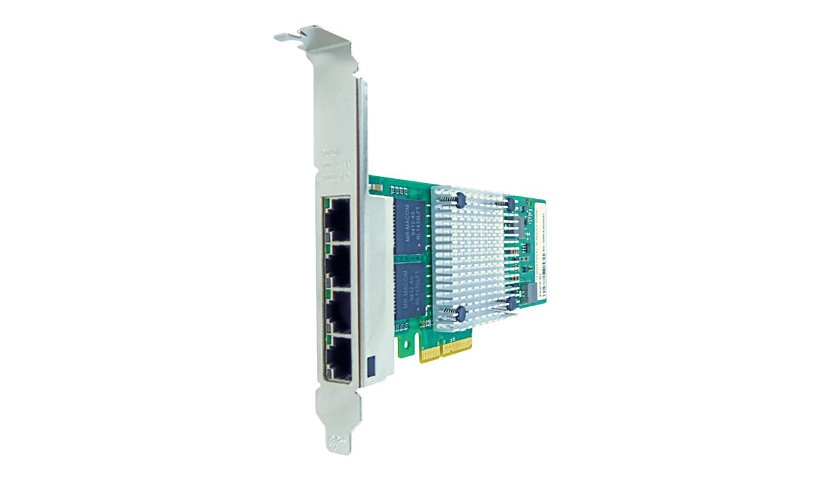

The Axiom W8X25AA-AX is a quad port Gigabit Ethernet card on a PCIe 2.1 x4 interface, made as an equivalent to the HP W8X25AA and listed as compatible with the Intel I350-T4. Its four RJ-45 ports run at 10, 100 or 1000 Mbps and it ships with a full height bracket. Listed operating systems include Windows, Windows Server, Red Hat, FreeBSD, Linux and DOS. The spec gives the controller as Intel 82576EB rather than the I350, so please confirm if the chipset matters.
Key Features
- 4 x 1GbE RJ-45 ports
- HP W8X25AA equivalent
- PCIe 2.1 x4
- Intel 82576EB controller
- Full height bracket
- Wide OS support
Product Information
Compatible to OEM Part Numbers: HP W8X25AA
Brand: Axiom
Manufacturer: Axiom
Product Line: Axiom
Product Type: Network adapter
Compatibility Specs: Intel I350-T4
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Operating System Required: FreeBSD 7.2 or later, Linux Kernel 2.6.30 or later, Microsoft DOS, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Vista (32/64 bits), Red Hat Enterprise Linux 5.6, Red Hat Enterprise Linux 6.x, SuSE Linux Enterprise Server 10 SP4, SuSE Linux Enterprise Server 11 SP1, Vmware ESX 4.02, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Connectivity
PCI Specification Revision: PCIe 2.1
Port Quantity: 4
Interface Provided: 4 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Host Interface: PCI Express 2.1 x4
Memory and Processor
Processor Brand: Intel
Processor Number: JL82576EB
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.2 inch
Width: 0.6 inch
Depth: 5.9 inch
Weight: 3.84 ounce
Included Items
Included Accessories: Full-height bracket
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
