Product Information

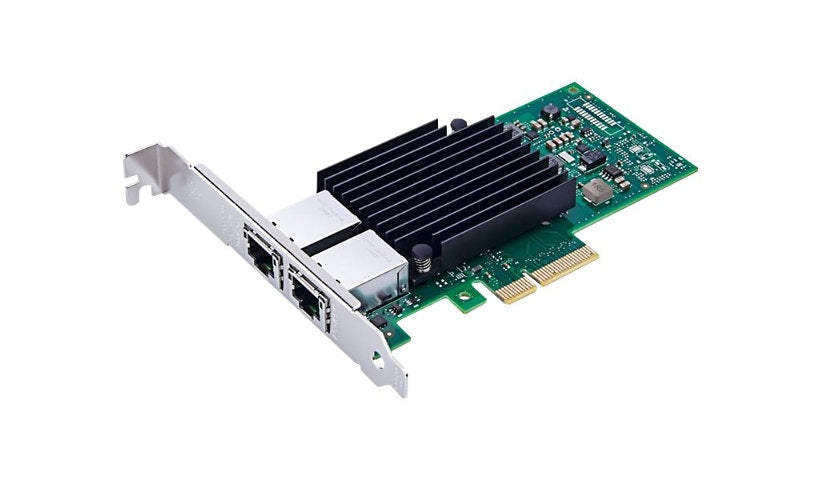

The Axiom X550T2-AX is a dual port 10GBase-T network card on a PCIe 3.0 x4 interface, built on the Intel X550-AT2 controller as an equivalent to the Intel X550-T2. Its RJ-45 ports run at 10 or 1 Gigabit Ethernet and support iSCSI, FCoE, QoS with up to 64 virtual ports and jumbo frames up to 15.5 KB. Listed operating systems include Windows, Windows Server, Red Hat, SUSE, FreeBSD and VMware ESXi.
Key Features
- 2 x 10GBase-T RJ-45 ports
- Intel X550-AT2 controller
- PCIe 3.0 x4
- Intel X550-T2 equivalent
- iSCSI and FCoE
- Jumbo frames to 15.5 KB
Product Information
Compatible to OEM Part Numbers: Intel X550-T2
Brand: Axiom
Manufacturer: Axiom
Product Line: Axiom
Model: X550T2-AX
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet, iSCSI
Network Standard: iSCSI
Cable Type: Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: up to 15.5 KB, QoS virtual ports: up to 64
Operating System Required: FreeBSD 10.2, Linux Kernel 2.6 or later, Microsoft Windows 7 64-bit Edition SP1, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.1, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12, VMware ESXi 5.5, VMware ESXi 6.0, Windows 8 / 8.1 / 10 (64 bits)
Features: FCoE support, Quality of Service (QoS)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: PCI Express 3.0 x4
Memory and Processor
Processor Brand: Intel
Processor Number: X550-AT2
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Dimensions and Weight
Height: 2.8 inch
Width: 0.7 inch
Depth: 6.6 inch
Weight: 6.56 ounce
Certifications and Listing
Compliant Standards: BSMI, C-Tick, FCC Class B certified, RoHS, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
