Product Information

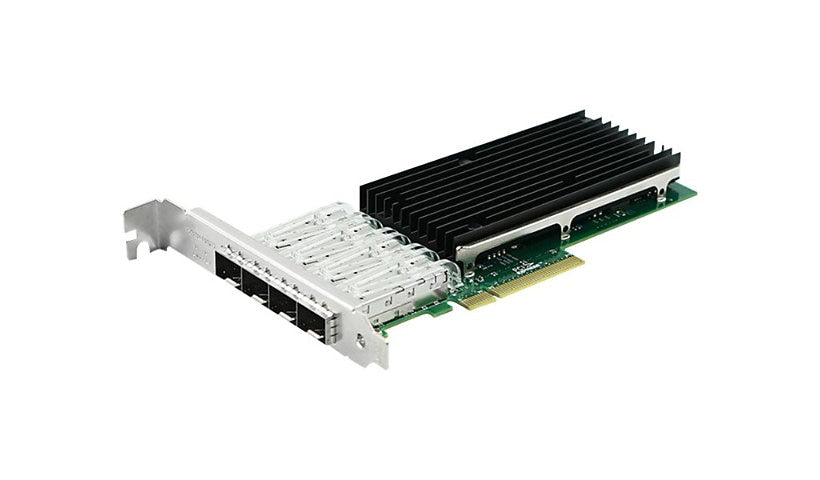

The Axiom X710DA4-AX is a quad port 10 Gigabit SFP+ network card on a PCIe 3.0 x8 interface, using an Intel X710-BM2 controller, made as an equivalent to the Intel X710-DA4. It is built for server and network virtualization across LAN and SAN traffic, reaching wire rate on small packets. It supports iSCSI and PXE boot and SNMP and RMON management. Listed operating systems include Windows Server, Red Hat, SUSE, FreeBSD and Linux.
Key Features
- 4 x 10GbE SFP+ ports
- Intel X710-BM2 controller
- PCIe 3.0 x8
- Intel X710-DA4 equivalent
- iSCSI and PXE boot
- SNMP and RMON
Product Information
Brand: Intel
Manufacturer: Axiom
Product Line: Axiom
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: iSCSI, TCP/IP, UDP/IP
Remote Management: RMON, SNMP
Data Transfer Rate: 10 GBps
Operating System Required: FreeBSD 10, FreeBSD 9, Linux Kernel 2.6.32, Linux Kernel 3.x, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 11 SP3, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition, VMware ESXi 5.1, VMware ESXi 5.5
Features: iSCSI boot, PXE support, Watch Dog Timer (WDT)
Connectivity
Port Quantity: 4
Interface Provided: 4 x 10Gb Ethernet - SFP+
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: PCI Express 3.0 x8
Memory and Processor
Processor Brand: Intel
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity, Port transmission speed
Dimensions and Weight
Height: 2.7 inch
Width: 0.5 inch
Depth: 6.5 inch
Certifications and Listing
Compliant Standards: IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.3, IEEE 802.3ad (LACP)
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
