Product Information

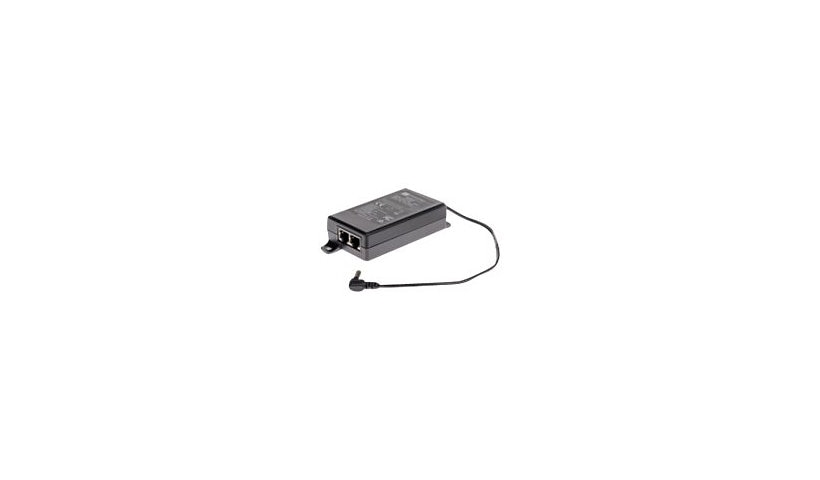

The Axis 02044-001 splitter separates power and data from a PoE cable so a non-PoE device can use it, giving 5 V output up to 12.5 W. It is 802.3af compliant, works with any Axis midspan or PoE switch and is listed for the AXIS T8705 video decoder. This is a splitter, not an injector.
Key Features
- 802.3af PoE input, 36-57 V
- 5 V DC output, up to 12.5 W
- Separate data and power outputs
- For AXIS T8705 video decoder
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Product Type: PoE Splitter
Subcategory: Power converters, splitters and accessories
Compatibility Specs: AXIS T8705 Video Decoder
Packaged Quantity: 1
Color Category: Black
Connectivity
Interface Provided: 1 x LAN - RJ-45
Output Connector Quantity: 2
Power
Required Voltage: 36 - 57 volt
Input Connector Type: RJ-45
Power Output Connectors Details: 1 x power DC jack 2.1 mm, 1 x RJ-45
Power Provided: 12.5 watt
Form Factor (Power Device): External
Input Connectors: 1
Output Connector Type: Power DC jack, RJ-45
Max Input Current: 2.5 ampere
Provided Voltage: 5 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Dimensions and Weight
Height: 1.1 inch
Width: 2.2 inch
Depth: 3.9 inch
Weight: 3.53 ounce
Included Items
Cables: Power cable - integrated - 1 ft
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, EMC, EN 55032 Class A, EN55024, FCC CFR47 Part 15 B Class A, ICES-3(A)/NMB-3(A), IEEE 802.3af, Plug and Play, RCM
ENERGY STAR Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
