Product Information

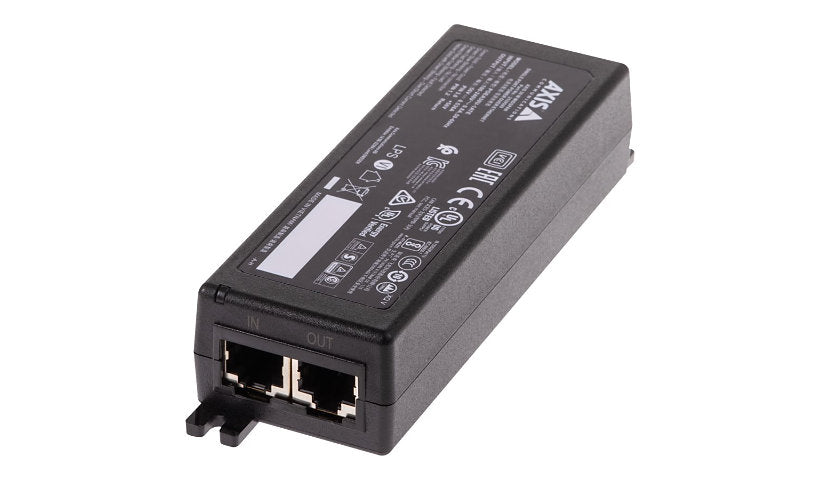

Power one PoE or PoE+ device such as an IP camera with the Axis 02172-004 outdoor midspan. It delivers up to 30 W at 56 V DC, supports 802.3af and 802.3at, handles -4 to 104 °F and mounts on a DIN rail or wall. It is listed for many Axis models including the M4308 and Q3536.
Key Features
- 1 x Gigabit PoE+ output
- Up to 30 W at 56 V DC
- 802.3af and 802.3at
- Operating range -4 to 104 °F
- DIN rail or wall mount
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Midspan
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color: Black
Color Category: Black
Country: United States
Network and Communication
Features: DIN rail mountable, Wall Mountable
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE+
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Input Connector Type: Power IEC 60320 C14
Power Output Connectors Details: 1 x RJ-45
Power Provided: 30 watt
Form Factor (Power Device): External
Input Connectors: 1
Provided Voltage: DC 56 volt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
Dimensions and Weight
Height: 1.2 inch
Width: 1.8 inch
Depth: 5.5 inch
Weight: 5.11 ounce
Included Items
Cables: Power cable (C13) - external
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, CCC, CISPR 24, EAC, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IS13252, KCC KN32 Class A, KCC KN35, Plug and Play, RCM, UL 60950-1, UL 62368-1, VCCI Class A
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
