Product Information

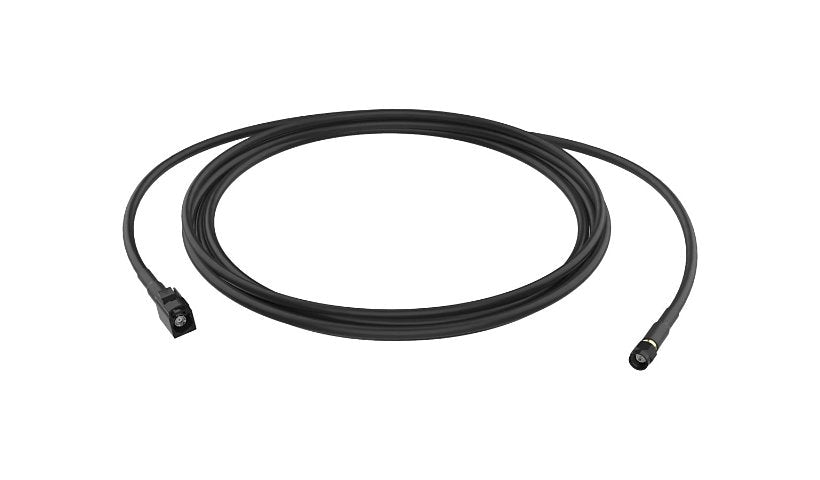

This robust, flexible AXIS cable connects 2nd-generation AXIS F Series sensors and main units, including the F91 main unit and F21, F72 and F41 sensors. It runs indoors or outdoors, has a 40 mm bend radius, SMA and FAKRA connectors and 50 ohm impedance, and can be crimped to length. Backed by a 3 year limited warranty.
Key Features
- SMA to FAKRA cable
- 3.3 ft length
- Indoor/outdoor
- For AXIS F Series
- 3 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: 02249-001
Network Cable Type: Network cable
Compatible With: AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9104-B, F9111 Main Unit, F9114-B
Connectivity
Connector A: SMA
Connector A Quantity: 1
Connector B: FAKRA connector
Connector B Quantity: 1
Technical Information
Impedance: 50 ohm
Key Capabilities: Indoor / outdoor
Features: Bending radius 40mm
Dimensions and Weight
Cable Length: 3.3 ft
Weight: 1.41 ounce
Color: Black
Included Item
Packaged Quantity: 4
Additional Information
Tested Frequency (up to): 3 GHZ
Max Operating Temperature: 167 degree Fahrenheit
Min Operating Temperature: -40 degree Fahrenheit
Diameter: 0.2 inch
Certifications and Listing
Compliant Standards: CL2, E335585-T, IP66, IP67, IP6K9K, UL, UN ECE R118
Warranty
Limited Warranty: 3 Year
